RAM® Universal Backing Plate Mount

RAM® Universal Backing Plate Mount

Part#:
RAM-101-B-SAE1
UPC:
793442905544
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price127,13 €
143,40 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

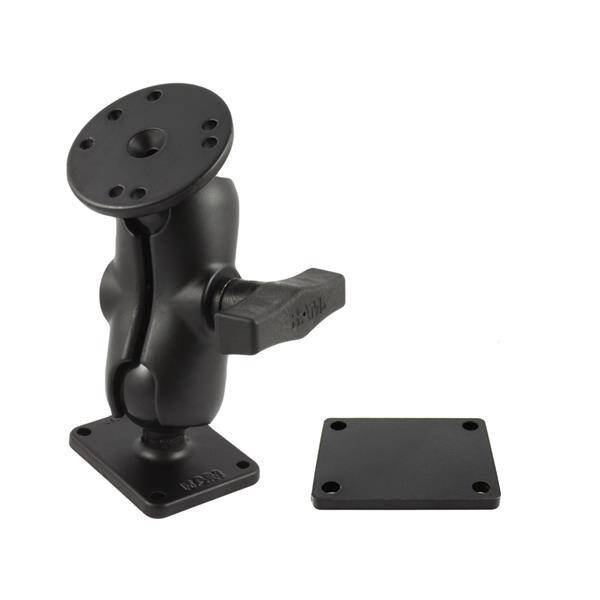

The RAM-101-B-SAE1 consists of a short double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-101-B-SAE1
Producer code
793442905544
Warranty
RAM MOUNT
Hardware Included
(1) 2" x 2.5" Aluminum Backing Plate|(1) 8" Zip Tie|(4) #10-24 x 1.5" Machine Screws|(4) #10-24 Nylock Nuts|(1) #8 x 1/2" Sheet Metal Screw|(1) #8 Washer|(1) 5/16" Wire Clip
Product Dimensions
Overall Height: 5.225"
Socket-to-Socket Length
2.5"
Hole Pattern
Round Plate:|4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|Rectangular Plate: 1.5" x 2"
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
Round Plate: 2.5" Diameter|Rectangular Plate: 2" x 2.5"
Materials
Marine-grade aluminum
Packaging Type
Box
Mounting Type
Drill Down
Socket Arm Length
Short Arm
Component parts
RAM-201U-B
RAM-202U
RAM-202U-225
