GDS® 20-60VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm
New in

GDS® 20-60VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm

Part#:
RAM-GDS-CHARGE-V20U
UPC:
793442024993
+ Add to compareAdd to shopping list
  • Features:
  • Hardwire charger includes male 5.5mm barrel connector; 20V-60V DC input range, 14VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • GDS® Ecosystem™ keeps devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
53,15 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

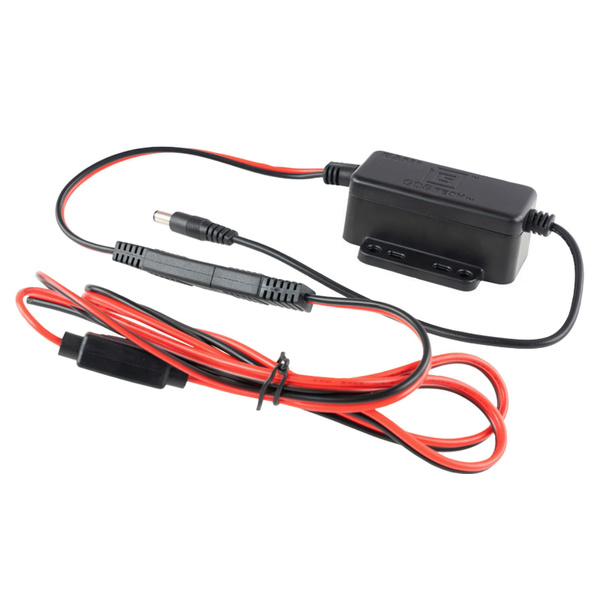

The GDS 20-60VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V20U) is the ideal solution for providing power to any RAM or GDS DC powered docking station. This hardwire charger has an input of 20-60VDC input & 14VDC output, ideal for most forklifts and material handling applications. The GDS Hardwire chargers were thoughtfully designed with long-term solutions in mind so when it comes time to upgrade, you avoid any rewiring by simply unplugging the power connector and attaching the new charger components.
Brand
RAM Mounts
Symbol
RAM-GDS-CHARGE-V20U
Producer code
793442024993
Series
GDS® Charge™ GDS® Tech™
New
Yes
Product Weight
136 g
Packaging Type
Poly Bag
Input Voltage
20-60VDC
Output Voltage
14VDC
Output Current
3.5A max
Input Connector
Male 5.5mm OD x 2.5mm ID Barrel Connector
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
.2 Meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire
