GDS® Audio™ Amplified Speaker
Part#:UPC:
RAM-SPEAK-A01
793442007613
Brand
Symbol
RAM-SPEAK-A01
Producer code
793442007613
Series
Product Weight
386 g
Hardware Included
Mounting Bracket|(2) #8-32 x 5/8" Machine Screws|(2) #8-32 Nylock Nuts
Speaker Specifications
Independently adjustable volume knob|Max volume level: 93dB|8Ω / 10W rated speaker
Packaging Type
Box
Input Voltage
9V - 26V DC
9-26VDC
Power Output
Peak Power: 10W|RMS Power: 8W
Input Cable Length
1150mm long red/black power cable
Output Cable Length
150mm long audio cable with 3.5mm mono plug jack
Operating Temperature
-20°C to +80°C
Storage Temperature
-40°C to +85°C
Compliance
Over current protection, short circuit protection and over volatage protection
Certifications
FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
Mounting Type
Drill Down
Hole Pattern
AMPS 2-Hole
Device or Accessory Type
Speaker
Regulatory
Over current protection, short circuit protection and over volatage protection
Ask a question
Write your opinion
- View details

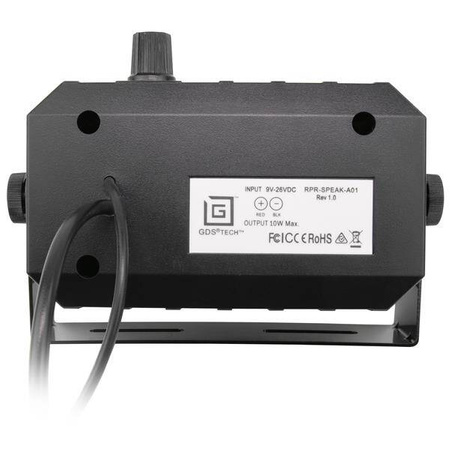

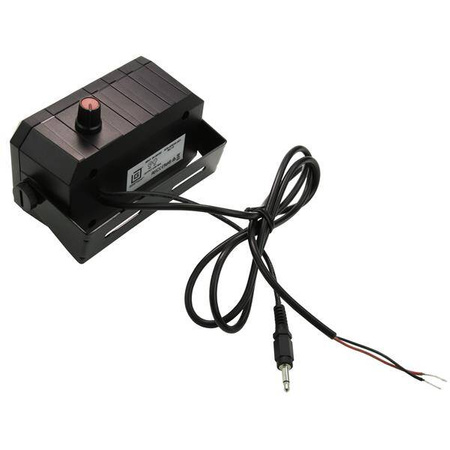

The GDS Audio amplified speaker can be hardwired into the cab of your vehicle with no batteries required for power. An adjustable knob allows for up to 93dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS Ecosystem, the speaker can be mounted to any GDS vehicle dock using the RAM short bracket adapter or RAM standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS vehicle dock. BrandSymbolRAM-SPEAK-A01Producer code793442007613SeriesProduct Weight386 gHardware IncludedMounting Bracket|(2) #8-32 x 5/8" Machine Screws|(2) #8-32 Nylock NutsSpeaker SpecificationsIndependently adjustable volume knob|Max volume level: 93dB|8Ω / 10W rated speakerPackaging TypeBoxInput Voltage9V - 26V DC9-26VDCPower OutputPeak Power: 10W|RMS Power: 8WInput Cable Length1150mm long red/black power cableOutput Cable Length150mm long audio cable with 3.5mm mono plug jackOperating Temperature-20°C to +80°CStorage Temperature-40°C to +85°CComplianceOver current protection, short circuit protection and over volatage protectionCertificationsFCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5aMounting TypeDrill DownHole PatternAMPS 2-HoleDevice or Accessory TypeSpeakerRegulatoryOver current protection, short circuit protection and over volatage protection - Recommended products
