GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
New in

GDS® Audio™ Amplified Speaker with PTT Breakout Feature

Part#:
RAM-SPEAK-A03
UPC:
793442019449
+ Add to compareAdd to shopping list
  • Features:

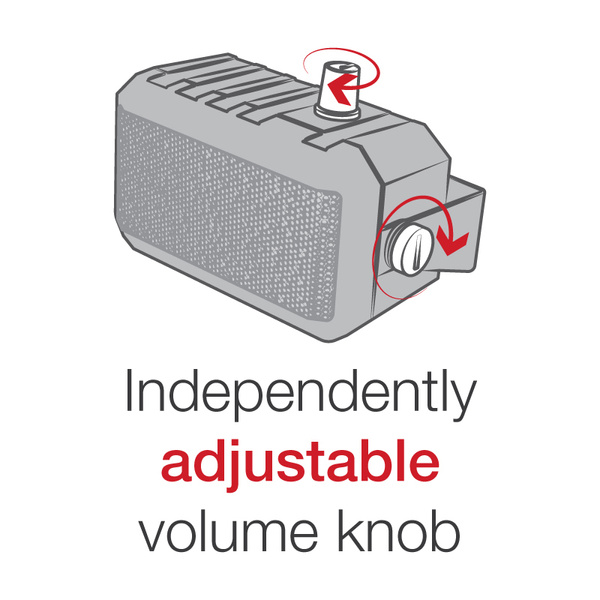

  • PTT-enabled amplification speaker with independent adjustable volume knob

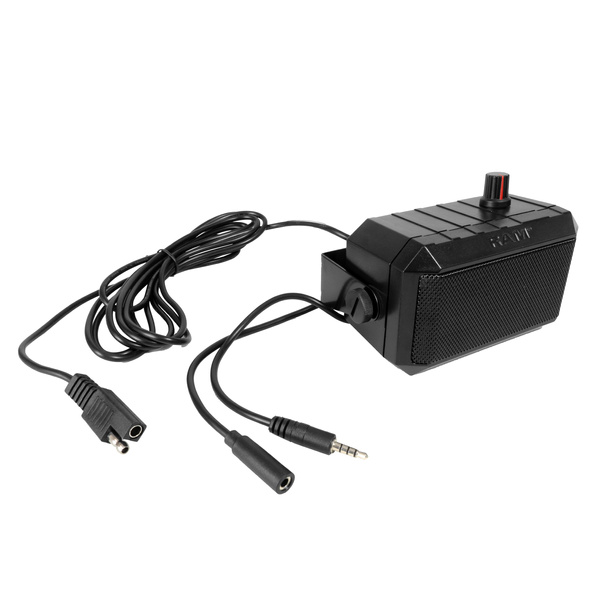

  • Includes SAE hardwire power input cable, audio input cable and audio output cable
  • 99db max volume level
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
190,72 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

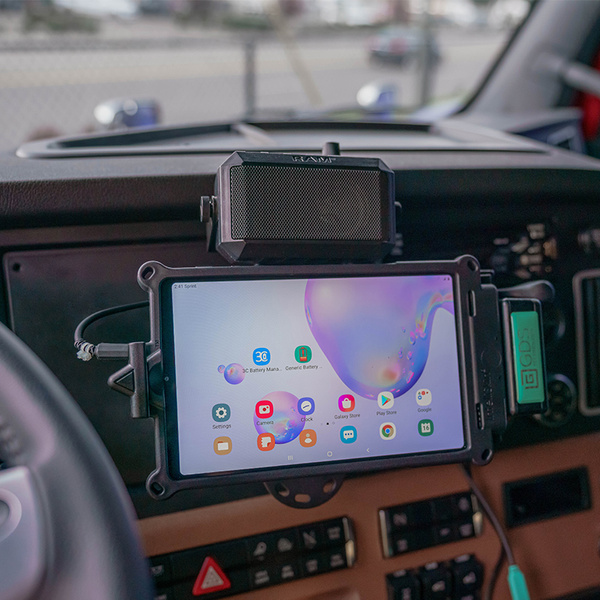

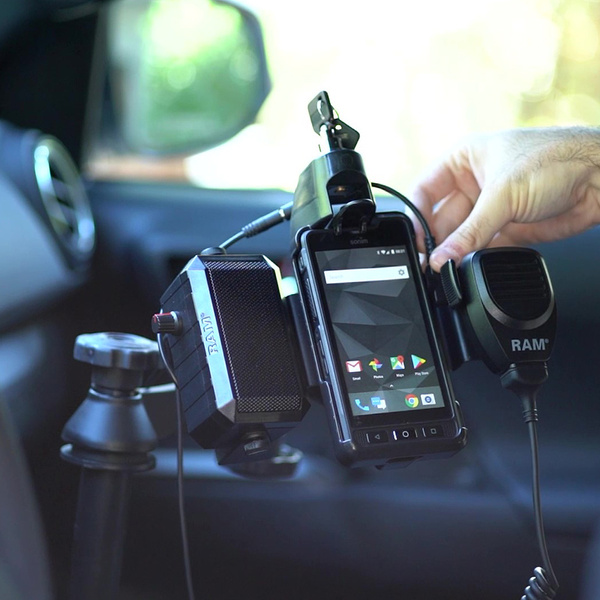

The GDS Audio Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A03) delivers powerful, reliable sound for in-cab communicationno batteries required. Hardwire it directly into your vehicle or connect via a GDS hardwire charger using the SAE connector. The built-in audio breakout feature supports an optional PTT microphone or headset (sold separately), enabling half- or full-duplex conversations depending on your setup. With an adjustable output of up to 99dB, this speaker ensures clear audio even in noisy environments. Integrated overcurrent, short circuit, and overvoltage protection provide added peace of mind. Designed as part of the GDS Ecosystem, the speaker easily mounts to any GDS vehicle dock with the included short or standard bracket adapter and hardware.
Brand
RAM Mounts
Symbol
RAM-SPEAK-A03
Producer code
793442019449
Series
GDS® Audio™ GDS® Tech™
Product Weight
449 g
Hardware Included
Mounting Bracket|(2) #8-32 x 5/8" Machine Screws|(2) #8-32 Nylock Nuts
Speaker Specifications

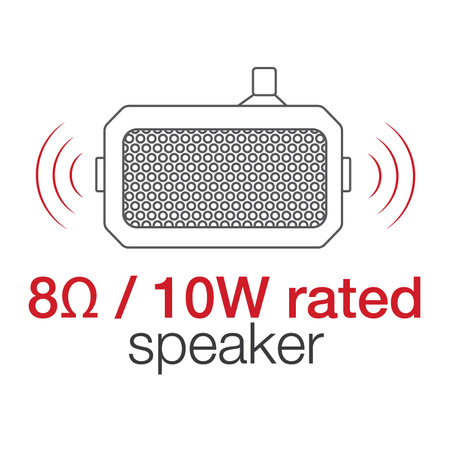

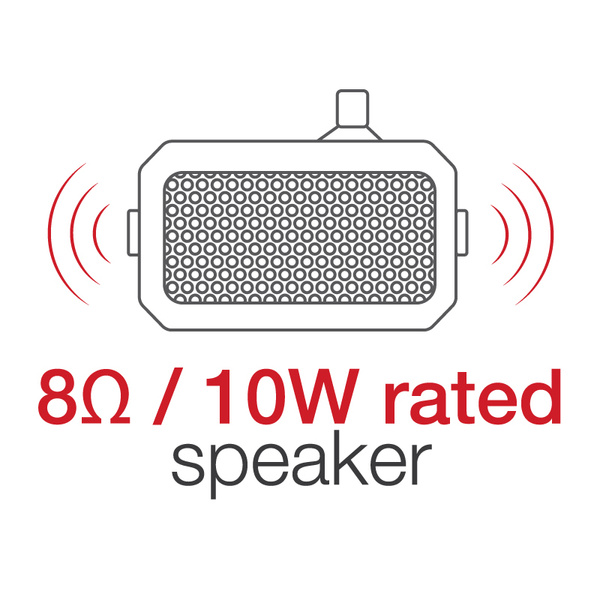

Independently adjustable volume knob|Max volume level: 99dB|8Ω / 10W rated speaker
Packaging Type
Box
Input Voltage
9-26VDC
Power Output
Peak Power: 10W|RMS Power: 8W
Input Connector
3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
Input Cable Length
2.5 Meter SAE Cable
Output Cable Length
150mm long audio cable with 3.5mm mono plug jack
Operating Temperature
-20°C to +80°C
Storage Temperature
-40°C to +85°C
Regulatory
Over current protection, short circuit protection and over volatage protection
Certifications
FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
