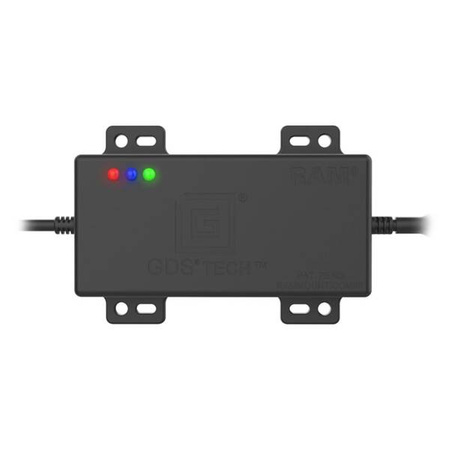

GDS® CAN Bus with 9-Pin Connector
GDS® CAN Bus with 9-Pin Connector
GDS® CAN Bus with 9-Pin Connector
GDS® CAN Bus with 9-Pin Connector
GDS® CAN Bus with 9-Pin Connector
GDS® CAN Bus with 9-Pin Connector

GDS® CAN Bus with 9-Pin Connector

Part#:
RAM-GDS-CAN-9PU
UPC:
793442022272
+ Add to compareAdd to shopping list
  • Features:
  • HEX data communicated follows Open SAE J1939 Standard Protocol
  • Provides power and data to your device of choice
  • Three distrinct lights communicate CAN Bus status
  • Backed by a 3-year warranty
  • Three distinct lights communicate CAN Bus status
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
The GDS CAN Bus with 9-Pin Connector (RAM-GDS-CAN-9PU) revolutionizes the traditional CAN Bus, featuring a Direct-To-Tablet broadcast that allows the CAN Bus to broadcast unparsed HEX data directly to your tablet without the need of a SIM card or third party subscription service. Since the HEX data communicated follows Open SAE J1939 Standard Protocol, you can pick from any 3rd party app to process and present your vehicle's messaging. By cutting out 3rd party USB adapters from the traditional CAN Bus to the tablet, this all in-one solution provides power and data directly from the vehicle to the tablet keeping it charged while on the road. The GDS CAN Bus features three distinct lights so drivers are constantly aware of the device's status: the red light indicates that the CAN Bus is detecting power, the blue light indicates that the CAN Activity is present, and the green light indicates that the CAN Bus is charging the device. Always Protected. Always Connected.
Brand
RAM Mounts
Symbol
RAM-GDS-CAN-9PU
Producer code
793442022272
Series
GDS Charge GDS Tech
New
Yes
Product Dimensions
Overall Length: 4.76"|Overall Width: 3.33"|Overall Height: 1.31"
Input Voltage
12-24VDC
Output Voltage
Power Delivery:|5V @ 3A (15W)|9V @ 2A (18W)|12V @ 1.5A (18W)|USB Charging (BC):|5V @ 1.5A (7.5W)
Input Connector
9-Pin Connector
Input Cable Length
750mm
Output Connector
USB-C Male
Output Cable Length
2.5 Meters
