GDS® Combo Locking Power + Data Dock for Zebra ET5x 10.1" Series
Part#:UPC:
RAM-HOL-ZE11PDCLU
793442014253
- Features:
- Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral
- When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE11PDCLU
Producer code
793442014253
Product Weight
885 g
735 g
Hardware Included
(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
75 x 75 VESA
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Output Connector
USB 2.0 Type A
Transfer Speed
12Mbps
Device or Accessory Type
Tablet
Peripheral Output
500mAh
Zebra ET50 10.1" with rugged frame
Zebra ET51 10.1" with rugged frame
Zebra ET55 10.1" with rugged frame
Zebra ET56 10.1" with rugged frame
Ask a question
Write your opinion
- View details

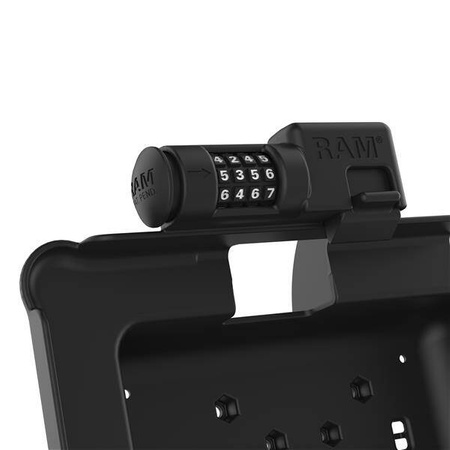

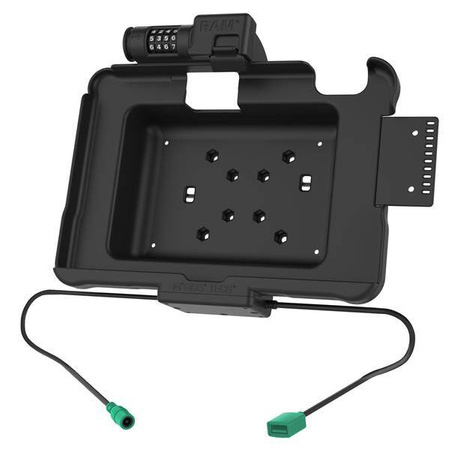

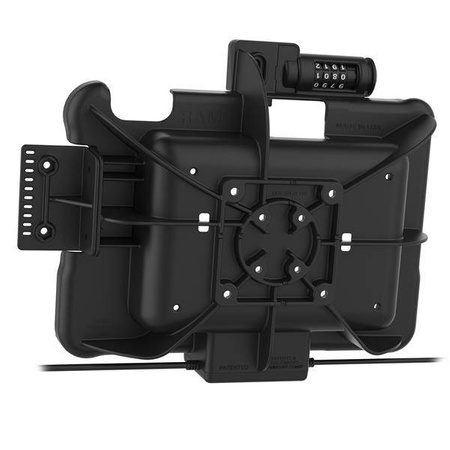

Featuring GDS Technology for data and charging capabilities and a combination lock for theft deterrence, the GDS Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system. BrandSymbolRAM-HOL-ZE11PDCLUProducer code793442014253Product Weight885 g735 gHardware Included(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB TypeHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"AMPS 4-Hole75 x 75 VESAMaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorOutput ConnectorUSB 2.0 Type ATransfer Speed12MbpsDevice or Accessory TypeTabletPeripheral Output500mAh - CompatibilityZebra ET50 10.1" with rugged frameZebra ET51 10.1" with rugged frameZebra ET55 10.1" with rugged frameZebra ET56 10.1" with rugged frame
