GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10
GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10

GDS® Combo Locking Power + Data Dock for Zebra XSLATE L10

Part#:
RAM-HOL-ZE15PDCLU
UPC:
793442015984
+ Add to compareAdd to shopping list
  • Features:
  • Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra XSLATE L10 via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price384,42 €
436,10 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

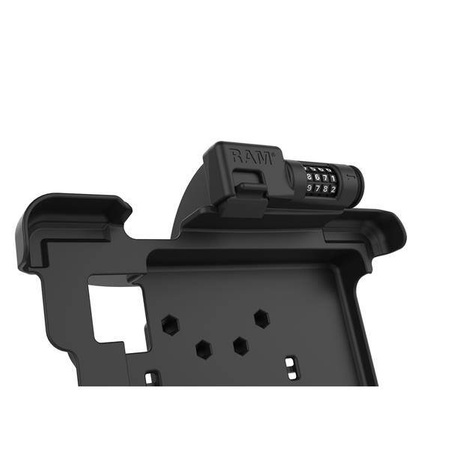

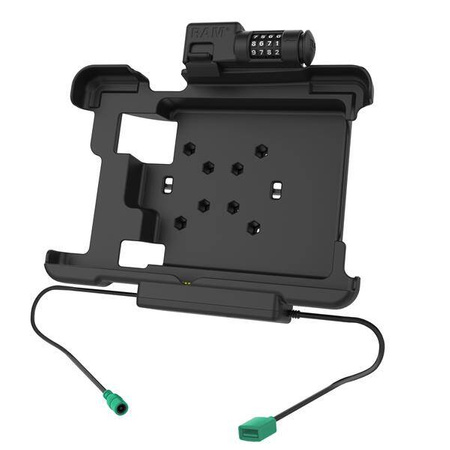

Featuring GDS Technology for data and charging capabilities and a combination lock for theft deterrence, the GDS Vehicle Dock for the Zebra XSLATE L10 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.
Brand
RAM Mounts
Symbol
RAM-HOL-ZE15PDCLU
Producer code
793442015984
Product Weight
948 g
Hardware Included
(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type
(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type A Cable Clamp Housing
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
75 x 75 VESA
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Output Connector
USB 2.0 Type A
Transfer Speed
12Mbps
Device or Accessory Type
Tablet
Peripheral Output
500mAh
Zebra XSLATE L10
