Part#:UPC:
RAM-GDS-DOCKL-V10-OMT3CDU
793442101489
- Features:

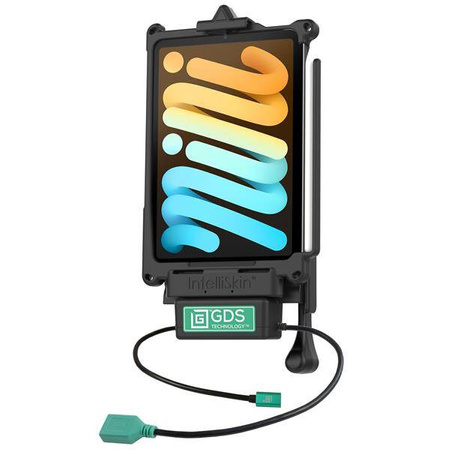

- Vehicle dock with integrated GDS® Technology™ for Apple iPad mini 6 and other shorter tablets offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen
- Type-C port provides high speed charging to the device with new short top cup power and single USB

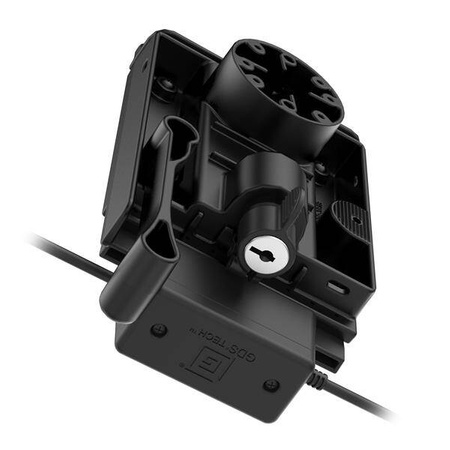

- Keyed lock for theft deterrence
- Easy, quick release of your tablet for on-the-go applications
- Backed by a 3-year warranty

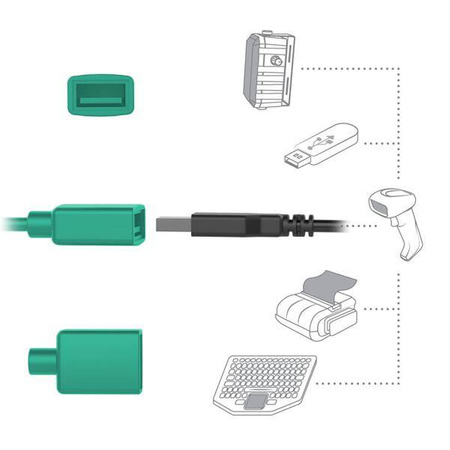

- Power delivered via USB-C connector; connect a single input device via USB-A connector
Brand
Symbol
RAM-GDS-DOCKL-V10-OMT3CDU
Producer code
793442101489
Product Weight
748 g
Hardware Included
Assembly Hardware|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) #8 x 5/8" Sheet Metal Screws|(1) Cable Clamp|(2) Keys

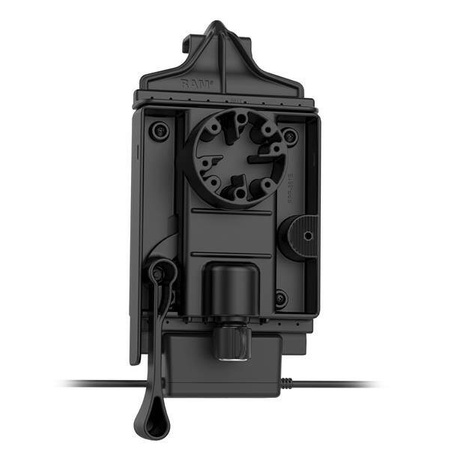

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
Type-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A max|Peripheral: 5V @ 500mA max
Type-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A max|Peripheral: 5V @ 900mA max
Power Output
15W
Input Connector
USB Type-C|USB Type A for 1 Peripheral
Output Cable Length
.21 Meters
Device or Accessory Type
Tablet
Component parts
RAM-GDS-DOCK-V10PDU
RAM-GDS-DOCKT-OMT3U
RAM-HOL-TABLBU
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-USBC-AMCMU
Peripheral Output
500mAh
Ask a question
Write your opinion
- View details
The single USB Type-C locking vehicle dock for IntelliSkin Next Generation features GDS Technology for Apple iPad mini 6 and other small tablets to enable high speed charging capabilities on the go. This spring-loaded, quick release dock features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 8 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKL-V10-OMT3CDUProducer code793442101489Product Weight748 gHardware IncludedAssembly Hardware|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) #8 x 5/8" Sheet Metal Screws|(1) Cable Clamp|(2) KeysHole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagOutput VoltageType-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A max|Peripheral: 5V @ 500mA maxType-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A max|Peripheral: 5V @ 900mA maxPower Output15WInput ConnectorUSB Type-C|USB Type A for 1 PeripheralOutput Cable Length.21 MetersDevice or Accessory TypeTabletComponent partsRAM-GDS-DOCK-V10PDURAM-GDS-DOCKT-OMT3URAM-HOL-TABLBURAM-GDS-CAB-CLAMP1URAM-GDS-CAB-USBC-AMCMUPeripheral Output500mAh - Recommended products
