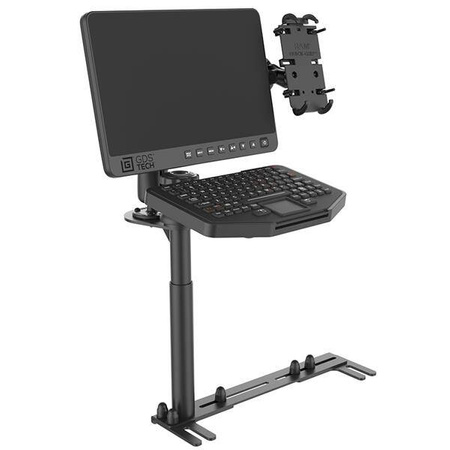

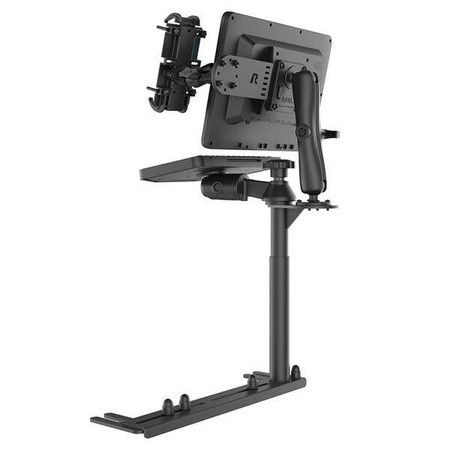

GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount

GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount

  • Features:
  • Transforms your vehicle into a mobile workstation with highly adjustable RAM® components and enabled by GDS® Tech™ peripherals
  • Includes RAM® No-Drill™ Universal Vehicle Base and tele-pole swing arm system, GDS® View™ 13.3" touch screen monitor, GDS® Keyboard™, RAM® Quick-Grip™ Phone Mount, display bracket, GDS® Tough-Hub™, CLA charger, and USB Type-C Cables
  • Compatible with Samsung DeX
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price4 033,85 €
5 929,87 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

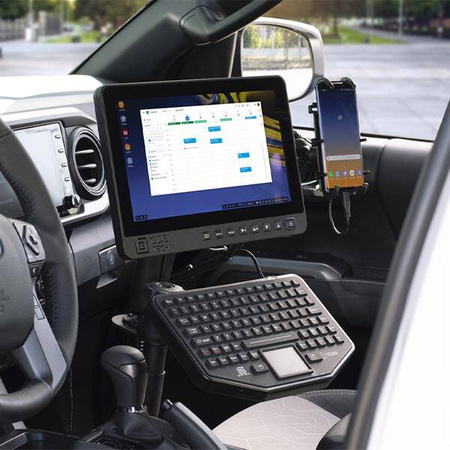

    All the benefits of the GDS Ecosystem in one mounting system to create your very own mobile workstation. Centralized around the GDS View 13.3" touch screen monitor, the GDS Ecosystem Vehicle Bundle is mounted on the universal RAM No-Drill vehicle base and tele-pole swing arm system, accompanied by the GDS Keyboard with trackpad, display bracket, RAM Quick-Grip XL phone mount, the GDS Tough-Hub, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM Quick-Grip XL and plugging your DeX Cable directly into the GDS View Monitor.
    Symbol
    RAM-VB-196-GDS-ECO1
    Producer code
    793442012389
    Product Weight
    12247 g
    Hardware Included
    Assembly Hardware|(1) HDMI Cable|(1) VGA Cable|(1) USB Type-B to USB Type-A Cable|Hardwire & CLA chargers for monitor|USB Type-C cable & CLA charger for hub & phone
    Holder Dimensions
    For Phone Holder:|Height Range: 5.75" - 8.25"|Width Range: 2.625" - 3.625"|Max Depth: .72"
    Monitor Specifications
    Screen Size: 13.3"|Anti-glare and Anti-fingerprint treatment applied on LCD|Max Resolution: 1920 x 1080 high resolution|Aspect ratio: 16:9|Tough Panel: 2-point capacitive touch|Audio: (2) 2W Speakers|Brightness: 800nits|Contrast ratio: 1000:1|Red monochro
    Materials
    Powder coated steel|Marine grade-aluminum|High strength composite
    Packaging Type
    Box
    Input Voltage
    Monitor: 10-30V DC|CLA Charger for Hub: 12-24V DC
    Power Output
    63W Total (45W for Type-C & 18W for Type-A)
    Output Current
    6A max
    Operating Temperature
    -10°C to +50°C
    Storage Temperature
    0°C to +45°C
    Ports

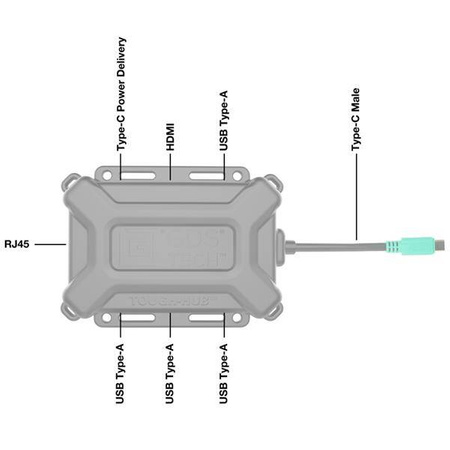

    CLA Charger:|(1) Type-C Female (PD) (1) Type-A Female (QC 3.0)||GDS® Tough-Hub™:|(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)|(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth|(1) HDMI Port - Resolution up to 4Kx2K@30Hz|(1)
    CLA Charger:|(1) Type-C Female (PD) (1) Type-A Female (QC 3.0)||GDS® Tough-Hub™:|(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)|(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth|(1) HDMI Port - Resolution up to 4Kx2K@30Hz|(1)
    Compliance
    Meets SAE J-1113|Integrated Short Circuit Protection (SCP)
    Certifications
    MIL-STD-810G 514.5 Vibration Tested|FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS
    MIL-STD-810H 514.5 Vibration Tested|FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
    Mounting Type
    Floor Mount
    Device or Accessory Type
    Monitor
    Vehicle Type
    Car & Truck
    Component parts
    RAM-B-138U-A
    RAM-DIS-103-2U
    RAM-GDS-CAB-USBC-CMCMU
    RAM-GDS-CHARGE-CIGC
    RAM-GDS-HUB-TYPEC-01
    RAM-GDS-MON-13-1
    RAM-HOL-PD4U
    RAM-KB2-USB
    RAM-VB-196
    RAM-VP-SW2F-8-2461
    RAM-DIS-103-2AU
    RAM-GDS-CHARGE-PPS-CIGC
    RAM-GDS-HUB-TYPEC-01-A
    Regulatory
    Meets SAE J-1113|Integrated Short Circuit Protection (SCP)
