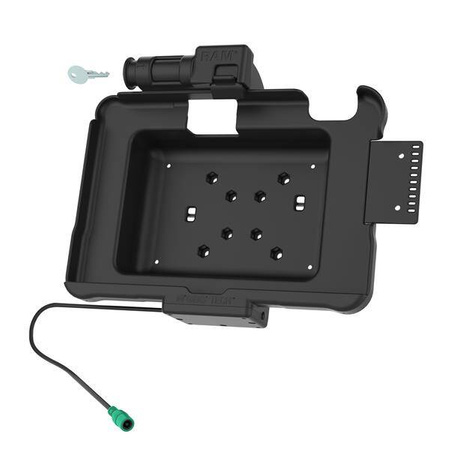

GDS® Key Locking Powered Dock for Zebra ET5x 10.1" Series
Part#:UPC:
RAM-HOL-ZE11PKLU
793442014246
- Features:
- Key locking powered dock provides charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

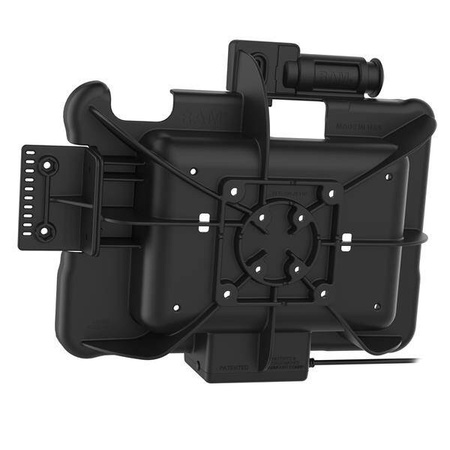

- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE11PKLU
Producer code
793442014246
Product Weight
885 g
Hardware Included
(2) Keys|(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(4) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
75 x 75 VESA
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Device or Accessory Type
Tablet
Zebra ET50 10.1" with rugged frame
Zebra ET51 10.1" with rugged frame
Zebra ET55 10.1" with rugged frame
Zebra ET56 10.1" with rugged frame
Ask a question
Write your opinion
- View details

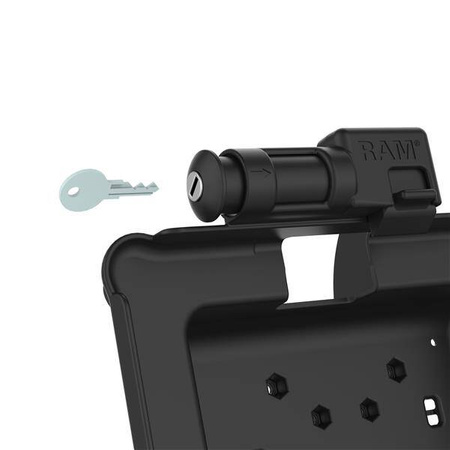

Featuring GDS Technology for charging capabilities and a key lock for theft deterrence, the GDS Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system. BrandSymbolRAM-HOL-ZE11PKLUProducer code793442014246Product Weight885 gHardware Included(2) Keys|(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(4) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"AMPS 4-Hole75 x 75 VESAMaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorDevice or Accessory TypeTablet - CompatibilityZebra ET50 10.1" with rugged frameZebra ET51 10.1" with rugged frameZebra ET55 10.1" with rugged frameZebra ET56 10.1" with rugged frame
