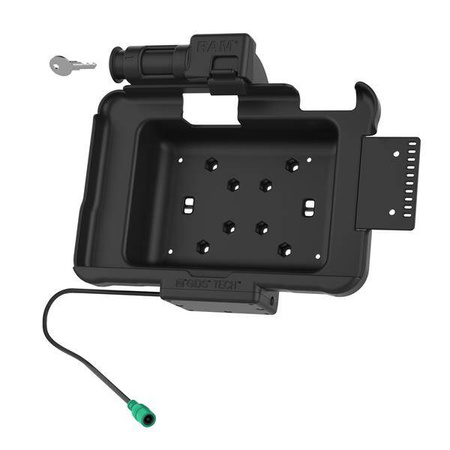

GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series

GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series

  • Features:
  • Key locking powered dock provides charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

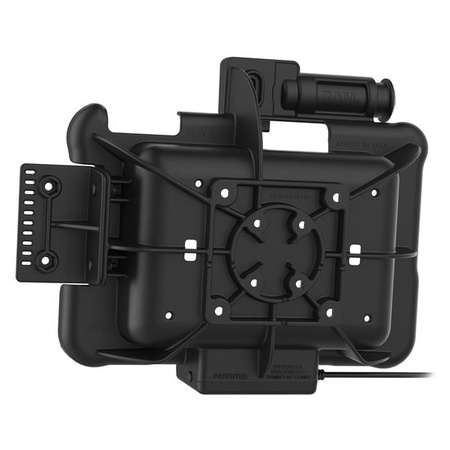

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Tuesday 16 pcs in stock
List price290,12 €
342,58 €
/ pc incl. VAT
14 days for easy returns
Find out in which store you can check the product and buy it right away
GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series
Safe shopping

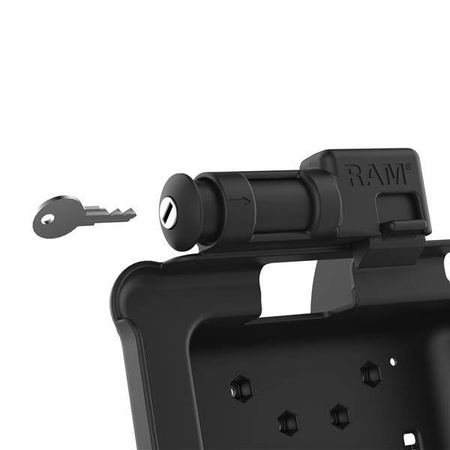

Featuring GDS Technology for charging capabilities and a key lock for theft deterrence, the GDS Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.
Symbol
RAM-HOL-ZE10PKLU
Producer code
793442014185
Warranty
Product Weight
748 g
Hardware Included
(2) Keys|(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(4) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
75 x 75 VESA
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Device or Accessory Type
Tablet
Compatibility
Zebra ET50 8.3" with rugged frame
Zebra ET51 8.4" with rugged frame
Zebra ET55 8.3" with rugged frame
Zebra ET56 8.4" with rugged frame
RAM MOUNT
RAM MOUNT
