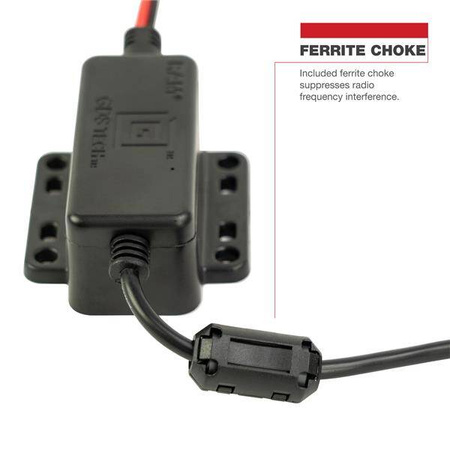

GDS® Modular 30-64V Hardwire Charger with Male USB Type-C
GDS® Modular 30-64V Hardwire Charger with Male USB Type-C
GDS® Modular 30-64V Hardwire Charger with Male USB Type-C
GDS® Modular 30-64V Hardwire Charger with Male USB Type-C

GDS® Modular 30-64V Hardwire Charger with Male USB Type-C

Part#:
RAM-GDS-CHARGE-V8CU
UPC:
793442015885
+ Add to compareAdd to shopping list
  • Features:
  • Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5.42-9.0VDC
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
77,05 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
The GDS Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery.
Brand
RAM Mounts
Symbol
RAM-GDS-CHARGE-V8CU
Producer code
793442015885
Series
GDS Charge GDS Tech
Product Weight
209 g
Packaging Type
Poly Bag
Input Voltage
30-64VDC
Output Voltage
5.42-9VDC
Output Current
2.5A max
Input Connector
Bare Wire
Input Cable Length
2.5 Meters
Output Connector
USB Type-C Male
Output Cable Length
1 Meter
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
Certifications
CE Certification|RCM Certification|FCC Certification|UL 62368-1 Certificaton
