GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
New in

GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series

  • Features:
  • Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack, USB Type A for adding a peripheral, and DB9 male connector
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, keyboards, mice, joysticks and PowerPack battery; tablet scan
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Friday 3 pcs in stock
List price350,87 €
414,30 €
/ pc incl. VAT
14 days for easy returns
Find out in which store you can check the product and buy it right away
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
GDS® Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

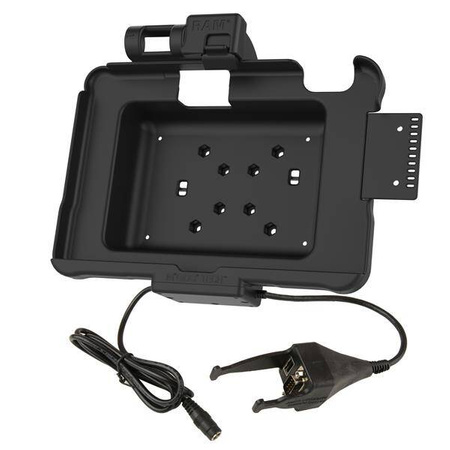

    Featuring GDS Technology for data and charging capabilities, the GDS Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable and DB9 male connector. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, keyboard, mouse, joystick and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.
    Symbol
    RAM-HOL-ZE11PD-DB9U
    Producer code
    793442024689
    Product Weight
    830 g
    Hardware Included
    (1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type
    Hole Pattern
    75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
    AMPS 4-Hole
    75 x 75 VESA
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Connector
    5.5mm DC Connector
    Output Connector
    USB 2.0 Type A|DB9 Male
    Transfer Speed
    12Mbps
    Device or Accessory Type
    Tablet
