GDS® Power + Data & DB9 Dock for Zebra ET5x 8.3" & 8.4" Series
Part#:UPC:
RAM-HOL-ZE10PD-DB9U
793442024672
- Features:
- Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack, USB Type A for adding a peripheral, and DB9 male connector
- When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, keyboards, mice, joysticks and PowerPack battery; tablet scan

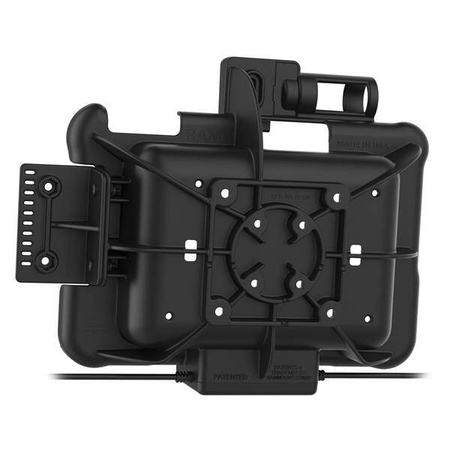

- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE10PD-DB9U
Producer code
793442024672
Product Weight
630 g
Hardware Included
(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
75 x 75 VESA
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Output Connector
USB 2.0 Type A|DB9 Male
Transfer Speed
12Mbps
Device or Accessory Type
Tablet
Peripheral Output
900mAh
Zebra ET50 8.3" with rugged frame
Zebra ET51 8.4" with rugged frame
Zebra ET55 8.3" with rugged frame
Zebra ET56 8.4" with rugged frame
Ask a question
Write your opinion
- View details

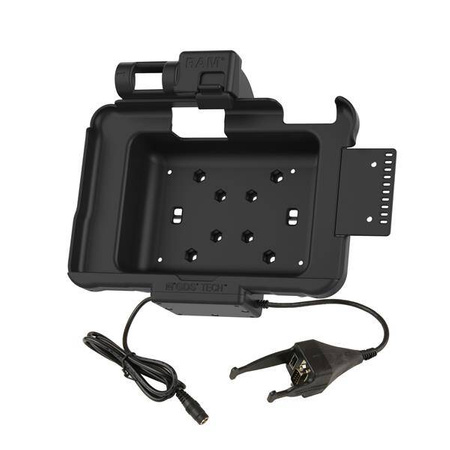

Featuring GDS Technology for data and charging capabilities, the GDS Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable and DB9 male connector. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, keyboard, mouse, joystick and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system. BrandSymbolRAM-HOL-ZE10PD-DB9UProducer code793442024672Product Weight630 gHardware Included(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB TypeHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"AMPS 4-Hole75 x 75 VESAMaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorOutput ConnectorUSB 2.0 Type A|DB9 MaleTransfer Speed12MbpsDevice or Accessory TypeTabletPeripheral Output900mAh - CompatibilityZebra ET50 8.3" with rugged frameZebra ET51 8.4" with rugged frameZebra ET55 8.3" with rugged frameZebra ET56 8.4" with rugged frame
