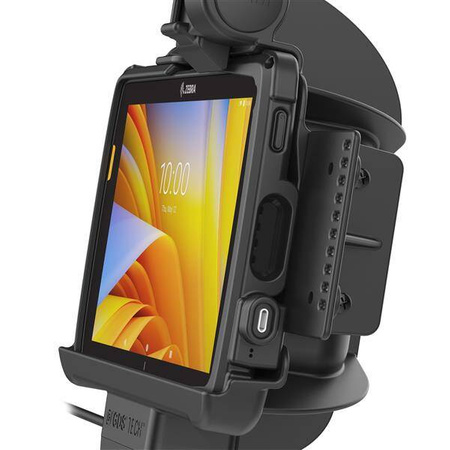

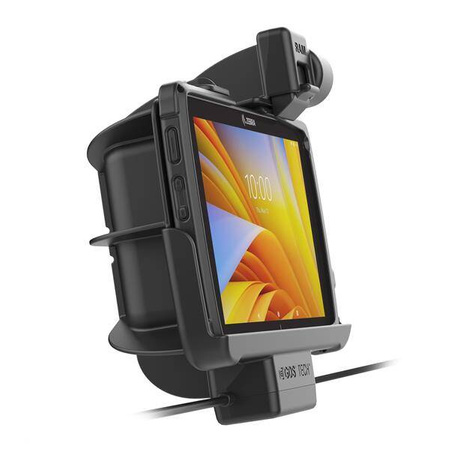

GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet
GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet

GDS® Power + Data Dock with Latch for Zebra ET4x 8" Tablet

Part#:
RAM-GDS-DOCKNLL-ZE20PDU
UPC:
793442017087
+ Add to compareAdd to shopping list
  • Features:
  • Form-fit + single USB Type-A dock designed specifically for the Zebra ET40 & ET45 8" tablets with IntelliSkin® protective sleeve, featuring GDS® Technology™

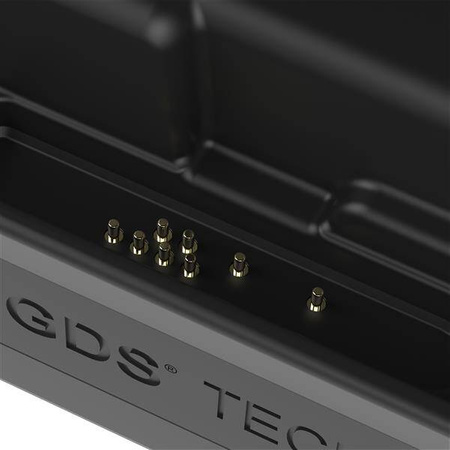

  • When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

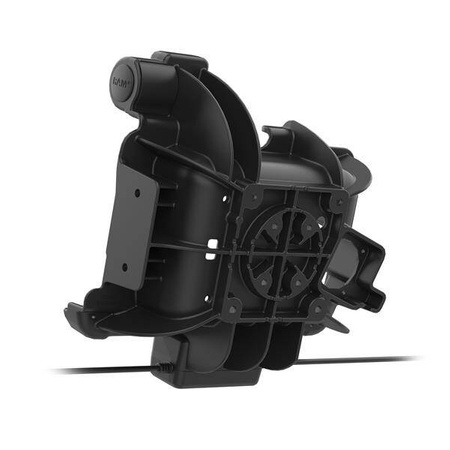

  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

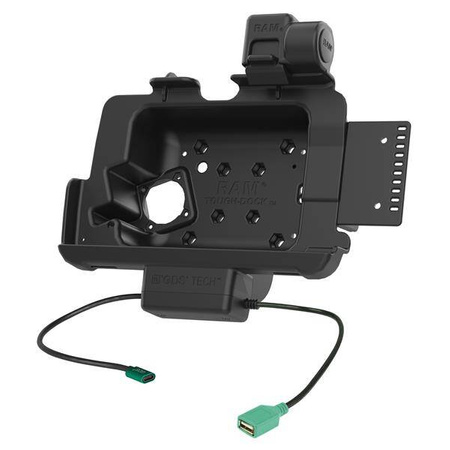

  • Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral
  • Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
412,53 €
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
For frequent docking and undocking of the Zebra ET40 & ET45 8" tablets wrapped in an IntelliSkin protective sleeve, this form-fit GDS vehicle dock (RAM-GDS-DOCKNLL-ZE20PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin-wrapped ET4x 8" is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS Ecosystem and the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
Brand
RAM Mounts
Symbol
RAM-GDS-DOCKNLL-ZE20PDU
Producer code
793442017087
Series
GDS Tech
Product Weight
653 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 20V @ 3A
Power Output
60W
Input Connector
USB Type-C
Input Cable Length
215mm
Output Connector
USB 2.0 Type A
Output Cable Length
215mm
Transfer Speed
12Mbps
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|CE|UKCA
Peripheral Output
500mAh
Zebra ET40 8" Tablet with IntelliSkin® Next Gen
Zebra ET45 8" Tablet with IntelliSkin® Next Gen
