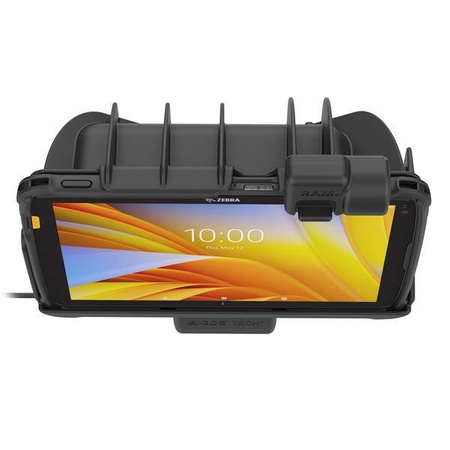

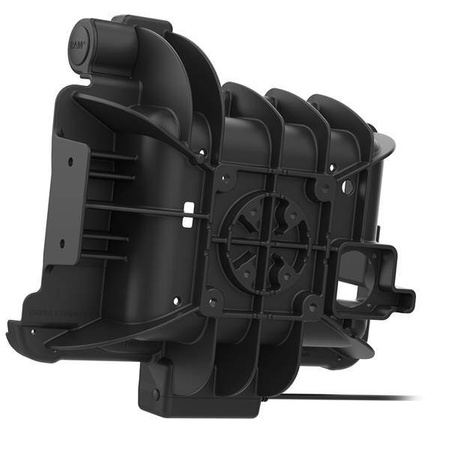

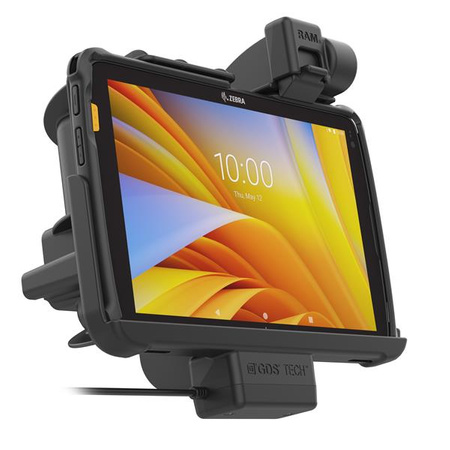

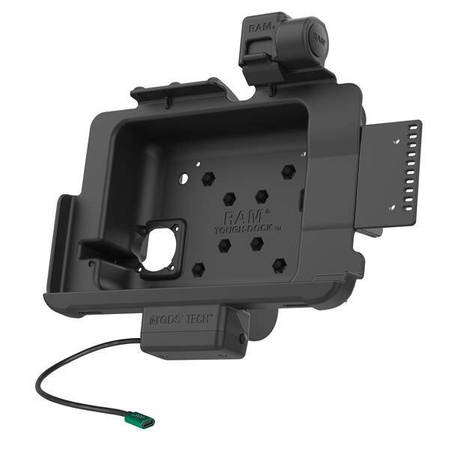

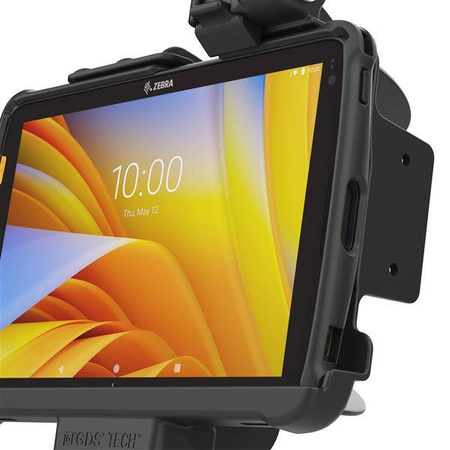

GDS® Powered Dock with Latch for Zebra ET4x 10" Tablet with IntelliSkin®
Part#:UPC:
RAM-GDS-DOCKNLL-ZE21PU
793442017452
- Features:
- Form-fit dock designed specifically for the Zebra ET40 & ET45 10" tablets with IntelliSkin® protective sleeve, featuring GDS® Technology™
- When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKNLL-ZE21PU
Producer code
793442017452
Series
Product Weight
726 g
Hardware Included
(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 20V @ 3A
Power Output
60W
Input Connector
USB Type-C
Input Cable Length
215mm
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|CE|UKCA
Zebra ET40 10" Tablet with IntelliSkin® Next Gen
Zebra ET45 10" Tablet with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details
For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin protective sleeve, this form-fit GDS vehicle dock (RAM-GDS-DOCKNLL-ZE21PU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin-wrapped ET4x 10" is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS Ecosystem and the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. BrandSymbolRAM-GDS-DOCKNLL-ZE21PUProducer code793442017452SeriesProduct Weight726 gHardware Included(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 20V @ 3APower Output60WInput ConnectorUSB Type-CInput Cable Length215mmCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationRoHS|WEEE|CE|UKCA - CompatibilityZebra ET40 10" Tablet with IntelliSkin® Next GenZebra ET45 10" Tablet with IntelliSkin® Next Gen
