GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
New in

GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello

Part#:
RAM-GDS-DOCK-V15-SAM84-RSM4
UPC:
793442031892
+ Add to compareAdd to shopping list
  • Features:
  • Spring-loaded powered dock featuring USB-C device connection designed for the Samsung XCover7/6 Pro
  • Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
  • GDS® Dock™ uses an integrated pogo pin connector to provide high-speed charging
  • Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

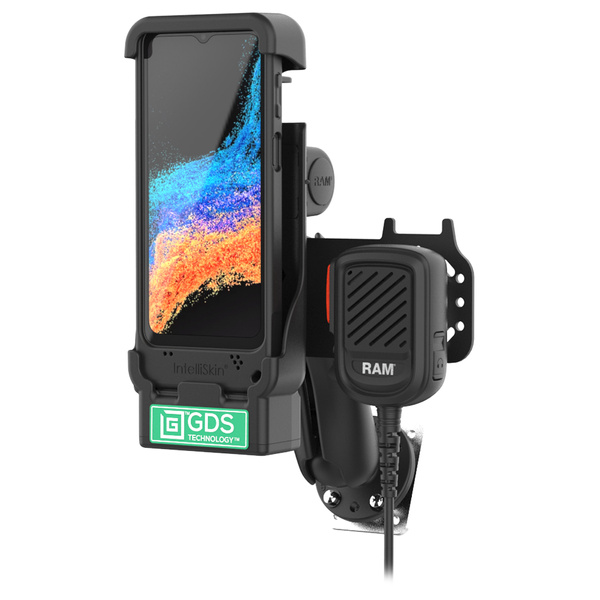

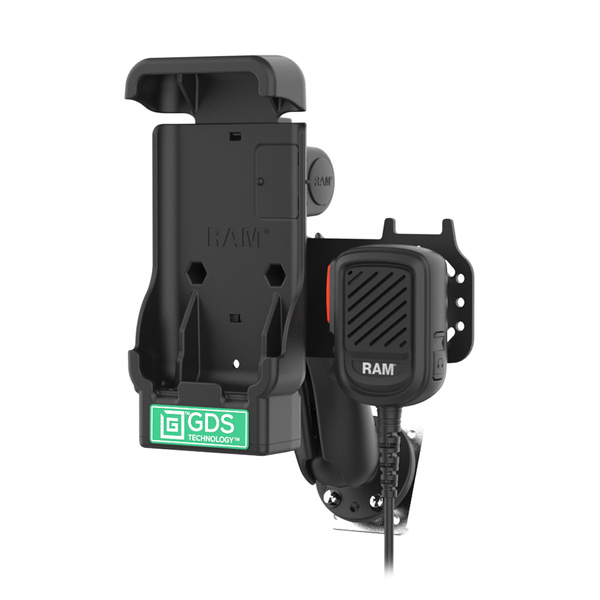

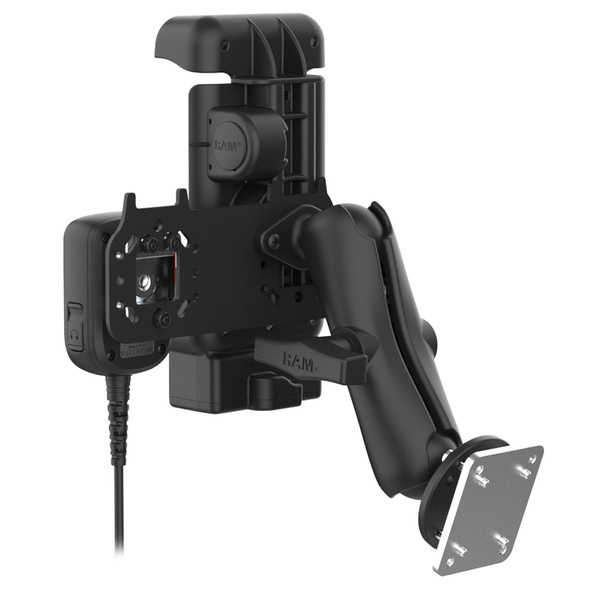

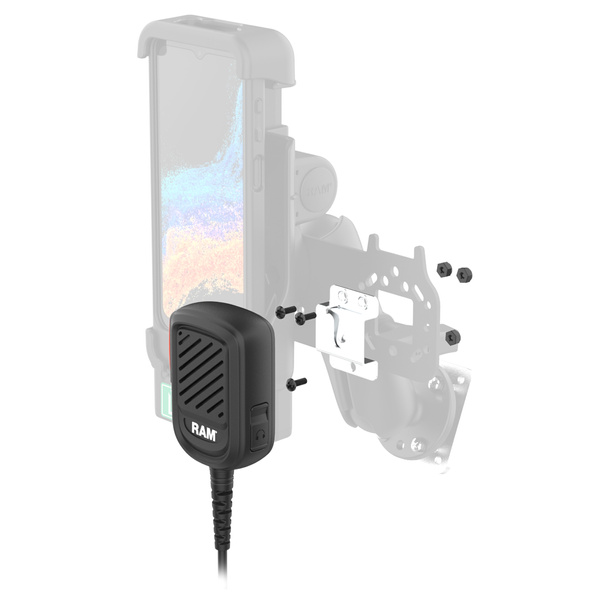

The GDS PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello (RAM-GDS-DOCK-V15-SAM84-RSM4) delivers a complete solution for enabling reliable Push-to-Talk over Cellular (PoC) communication. Built specifically with the rugged Samsung XCover6 Pro in mind, this kit includes a form-fit GDS Dock, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). The RSM provides dependable push-to-talk functionality through a USB-C connection, optimized for ESChat and Zello applications.
Brand
RAM Mounts
Symbol
RAM-GDS-DOCK-V15-SAM84-RSM4
Producer code
793442031892
Series
GDS® Tech™ IntelliSkin®
New
Yes
Hardware Included

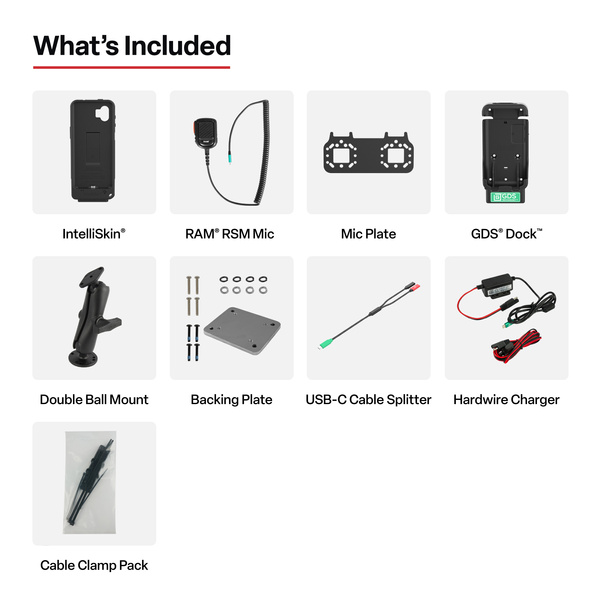

(1) IntelliSkin® for XCover7 Pro & 6 Pro (1) GDS® Dock™ (1) Remote Speaker Mic with Mounting Plate (1) Mic Bracket (1) Double Ball Mount with Backing Plate (1) Hardwire Charger (1) USB-C Splitter Cable (3) Cable Clamp Kits
Socket To Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Steel|Marine-grade aluminum|High strength composite
Packaging Type
Box
Power Specifications
Remote Speaker Mic: Operating Voltage: 1.2VDC - 5VDC Current Consumption 100UA - 500UA Output Impedance @ 1KHZ Max 2.2K Ohms Signal to Noise Ratio: 1KHZ 60+ DB Max Input SPL 110DB Moisture Ingress Rating IP67
Output Voltage
5V - 12V @ 3A
Power Output
15W
Input Connector
USB Type-C
Input Cable Length
380mm
Component parts
RAM-101-MIC4U
RAM-138-225B2U
RAM-CAB-CM2CF-1U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCK-V15-AU
RAM-GDS-SKIN-SAM84-C
RAM-RSM-A04
Samsung Galaxy XCover6 Pro
Samsung Galaxy XCover7 Pro
