GDS® Thin-Dock™ + Data for Zebra ET401 & ET4x 8" with IntelliSkin®
Part#:UPC:
RAM-GDS-DOCK-ZE46PDU
793442032356
- Features:
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®

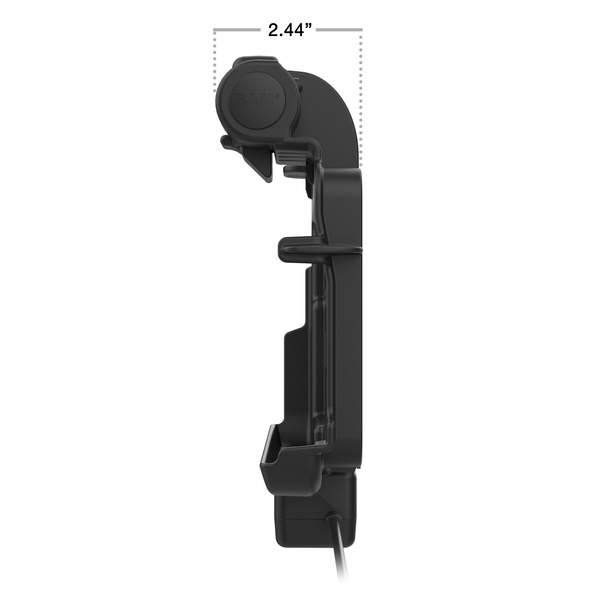

- Slim-profile design at 2.44" depth with metal reinforcement plate

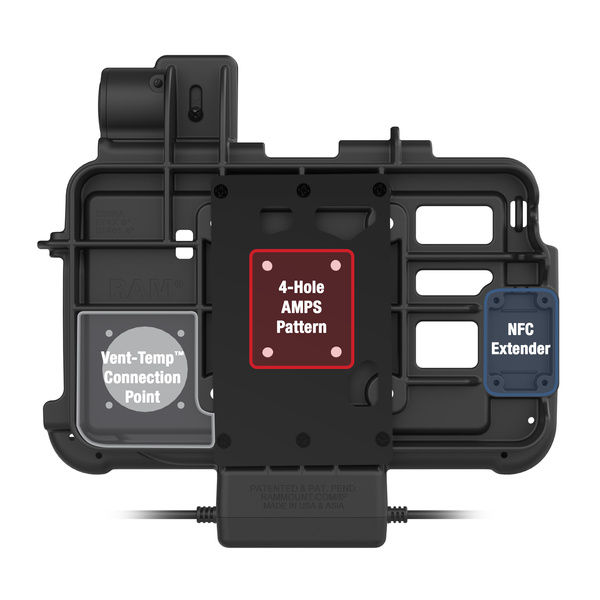

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCK-ZE46PDU
Producer code
793442032356
Series
New
Yes
Product Weight
612 g
Hardware Included
(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts (2) Cable Clamps
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 20V @ 3A
Power Output
60W
Input Connector
USB Type-C
Input Cable Length
215mm
Output Connector
USB 2.0 Type A
Output Cable Length
215mm
Peripheral Output
500mAh
Transfer Speed
12Mbps
Certifications
RoHS|WEEE|CE|UKCA
Zebra ET401 8" Tablet with IntelliSkin® Next Gen
Zebra ET40 8" Tablet with IntelliSkin® Next Gen
Zebra ET45 8" Tablet with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details

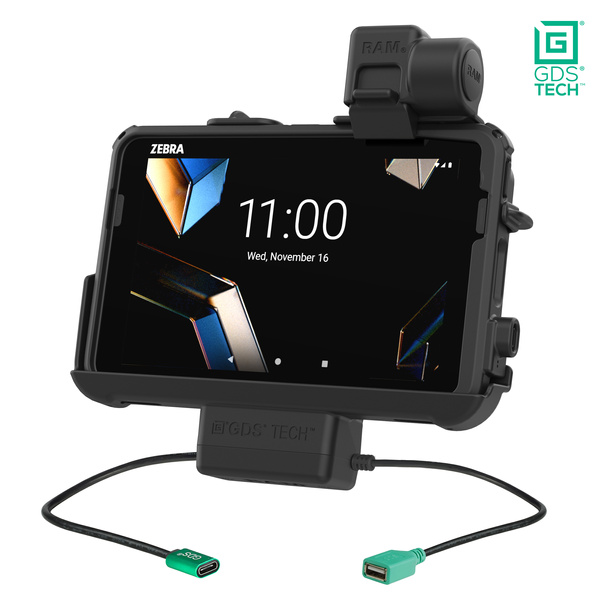

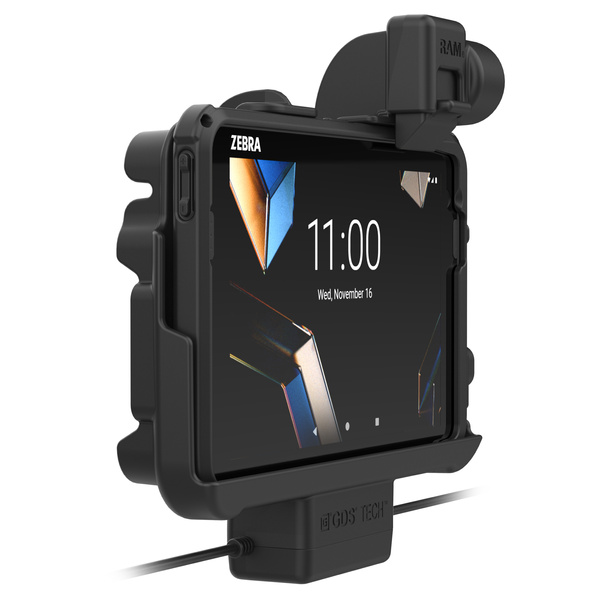

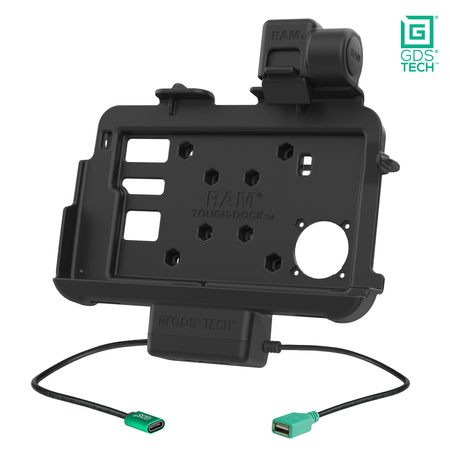

The GDS Thin-Dock + Data for Zebra ET401 & ET4x 8" with IntelliSkin (RAM-GDS-DOCK-ZE46PDU) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 8" enterprise tablets when used with an IntelliSkin protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the docks USB Type-C connector. Connect a mouse, keyboard, or printer using the peripheral USB-A connector. The design also maintains access to the tablets side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCK-ZE46PDUProducer code793442032356SeriesNewYesProduct Weight612 gHardware Included(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts (2) Cable ClampsHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 20V @ 3APower Output60WInput ConnectorUSB Type-CInput Cable Length215mmOutput ConnectorUSB 2.0 Type AOutput Cable Length215mmPeripheral Output500mAhTransfer Speed12MbpsCertificationsRoHS|WEEE|CE|UKCA - CompatibilityZebra ET401 8" Tablet with IntelliSkin® Next GenZebra ET40 8" Tablet with IntelliSkin® Next GenZebra ET45 8" Tablet with IntelliSkin® Next Gen
