Part#:UPC:
RAM-GDS-DOCK-SAM88CDU
793442020490
- Features:

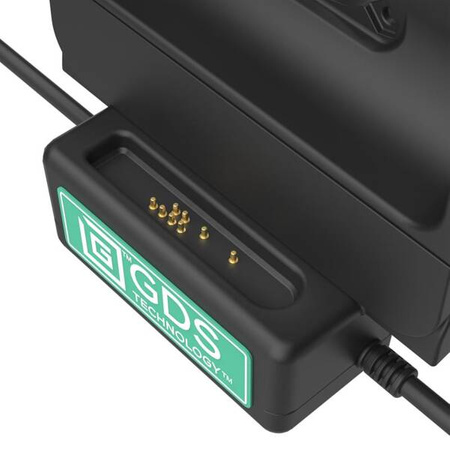

- Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
- Designed specifically for the Samsung Galaxy Tab A9+ wrapped in an IntelliSkin® Next Gen protective sleeve
- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and single USB Type-A for peripheral connection
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

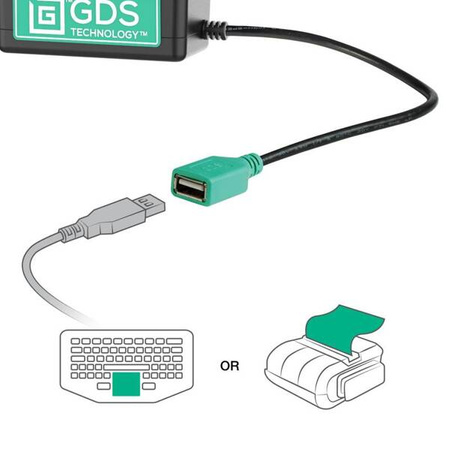

- Power delivered via USB-C connector; connect a single input device via USB-A connector
Brand
Symbol
RAM-GDS-DOCK-SAM88CDU
Producer code
793442020490
Series
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) USB Type-C to Type-A Cable

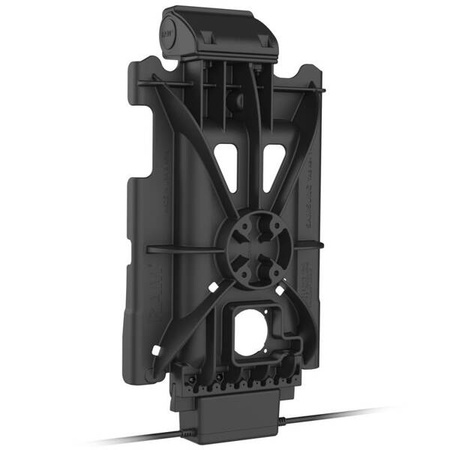

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 3A
Power Output
15W
Input Connector
USB Type-C|USB Type A for 1 Peripheral
Input Cable Length
215mm
Output Cable Length
215mm
Component parts
RAM-GDS-DOCK-V10PDU
RAM-GDS-DOCKB-SAM88U
RAM-GDS-DOCKH2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-USBC-AMCMU
Product Weight
744 g
Peripheral Output
500mAh
Samsung Galaxy Tab A9+ with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details

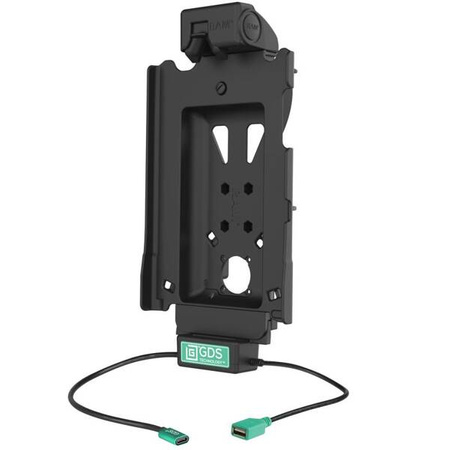

This GDS Tough-Dock vehicle dock is designed to support the Samsung Galaxy Tab A9+ in an IntelliSkin Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS Tough-Dock also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS Tough-Dock is compatible with RAM ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCK-SAM88CDUProducer code793442020490SeriesHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) USB Type-C to Type-A CableHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 3APower Output15WInput ConnectorUSB Type-C|USB Type A for 1 PeripheralInput Cable Length215mmOutput Cable Length215mmComponent partsRAM-GDS-DOCK-V10PDURAM-GDS-DOCKB-SAM88URAM-GDS-DOCKH2URAM-GDS-CAB-CLAMP1URAM-GDS-CAB-USBC-AMCMUProduct Weight744 gPeripheral Output500mAh - CompatibilitySamsung Galaxy Tab A9+ with IntelliSkin® Next Gen
