GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+
Part#:UPC:
RAM-GDS-101B2-SAM88CP-V3CU
793442027918
- Features:
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-101B2-SAM88CP-V3CU
Producer code
793442027918
Series
Product Weight
1787 g
Hardware Included
Assembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Vehicle Hardwire Charger
Socket To Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Steel|Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Input Voltage
10-30VDC
Output Voltage
5-15VDC
Output Current
3A max
Input Connector
Female USB Type-C
Input Cable Length
2.5 Meters
Output Connector
USB Type-C Male
Output Cable Length
1 Meter
Operating Temperature
-20°C to +70°C
Storage Temperature
-40°C to +85°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
Certifications
CE Certification|RCM Certification|FCC Certification|UL 62368-1 Certificaton
Component parts
RAM-GDS-CHARGE-V3C-2U
RAM-GDS-SKIN-SAM88-NG
RAM-GDS-CHARGE-V3C-3U
Samsung Galaxy Tab A9+
Ask a question
Write your opinion
- View details

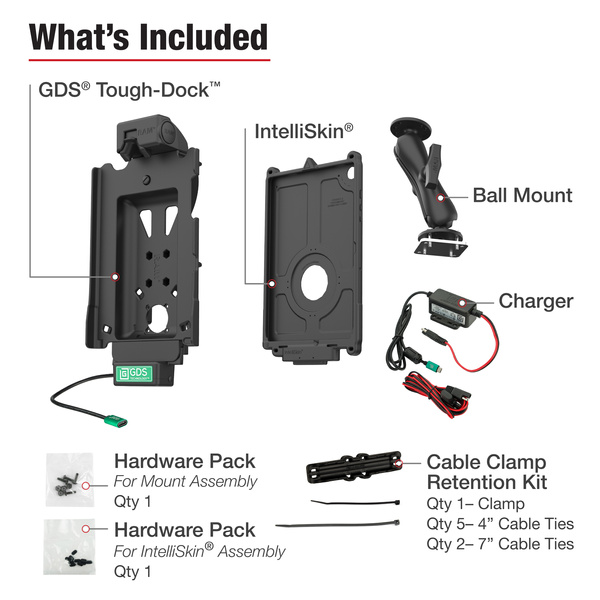

The GDS Tough-Dock Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-101B2-SAM88CP-V3CU) is an ideal solution for transportation and large fleet vehicles. This bundle includes a non-locking GDS Tough-Dock, IntelliSkin Next Gen for Samsung Tab A9+, hardwire charger with USB Type-C connector, C Size double ball mount with short arm, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected. BrandSymbolRAM-GDS-101B2-SAM88CP-V3CUProducer code793442027918SeriesProduct Weight1787 gHardware IncludedAssembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Vehicle Hardwire ChargerSocket To Socket Length4.66"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterBall SizeC Size (1.5")Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsSteel|Marine-grade aluminum|High strength compositePackaging TypePoly BagInput Voltage10-30VDCOutput Voltage5-15VDCOutput Current3A maxInput ConnectorFemale USB Type-CInput Cable Length2.5 MetersOutput ConnectorUSB Type-C MaleOutput Cable Length1 MeterOperating Temperature-20°C to +70°CStorage Temperature-40°C to +85°CRegulatoryOver Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture ResistantCertificationsCE Certification|RCM Certification|FCC Certification|UL 62368-1 CertificatonComponent partsRAM-GDS-CHARGE-V3C-2URAM-GDS-SKIN-SAM88-NGRAM-GDS-CHARGE-V3C-3U - CompatibilitySamsung Galaxy Tab A9+
