Part#:UPC:
RAM-GDS-DOCK-SAM80-MMU
793442017193
- Features:

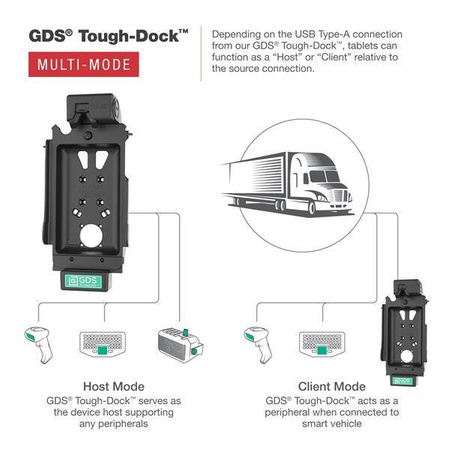

- Multi-mode allows for centralized AI software systems to access tablets when docked
- Designed specifically for the Samsung Galaxy Tab A7 Lite 8.7" wrapped in an IntelliSkin® Next Gen protective sleeve
- Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCK-SAM80-MMU
Producer code
793442017193
Series
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Cable Clamp with Zip Ties|(1) USB Type-C to Type-A Cable
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 3A max|Peripheral: 5V @ 900mA max
Power Output
15W
Input Connector
USB Type-C|USB Type A for 1 Peripheral
Output Cable Length
.21 Meters
215mm
Component parts
RAM-GDS-DOCK-V10PDU
RAM-GDS-DOCKB-SAM80U
RAM-GDS-DOCKHU
RAM-GDS-DOCKH2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-USBC-AMCMU
Peripheral Output
500mAh
Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details

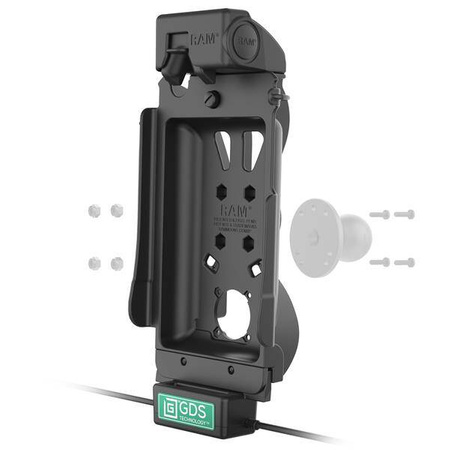

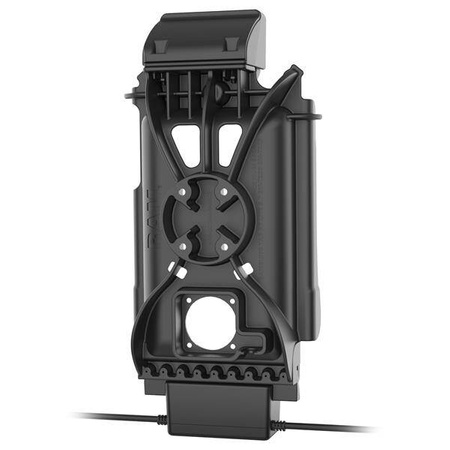

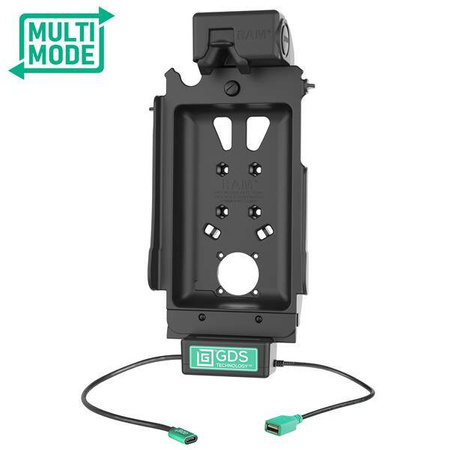

The GDS Tough-Dock for Samsung Tab A7 Lite 8.7" with Multi-Mode (RAM-GDS-DOCK-SAM80-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab A7 Lite 8.7" in an IntelliSkin Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin-wrapped tablet into a peripheral. There is no button or switch that turns this function on and offMulti-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS Tough-Dock supports high speed charging capabilities for the Galaxy Tab A7 Lite 8.7". The GDS Tough-Dock is compatible with RAM ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS Tough-Dock is backed by a 3-year warranty. BrandSymbolRAM-GDS-DOCK-SAM80-MMUProducer code793442017193SeriesHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Cable Clamp with Zip Ties|(1) USB Type-C to Type-A CableHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 3A max|Peripheral: 5V @ 900mA maxPower Output15WInput ConnectorUSB Type-C|USB Type A for 1 PeripheralOutput Cable Length.21 Meters215mmComponent partsRAM-GDS-DOCK-V10PDURAM-GDS-DOCKB-SAM80URAM-GDS-DOCKHURAM-GDS-DOCKH2URAM-GDS-CAB-CLAMP1URAM-GDS-CAB-USBC-AMCMUPeripheral Output500mAh - CompatibilitySamsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
