New in
Part#:UPC:
RAM-GDS-DOCKLR-D11-7-U1E
793442024399
- Features:

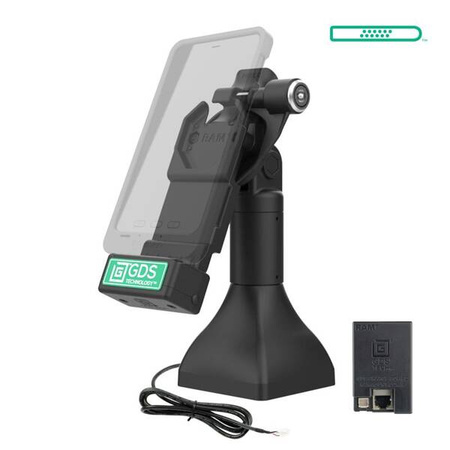

- Key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
- GDS® Uni-Conn™ dock pogo pins provide charging via PoE

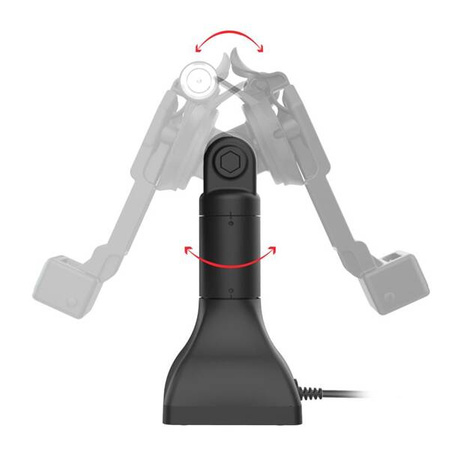

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKLR-D11-7-U1E
Producer code
793442024399
Series
New
Yes
Hardware Included

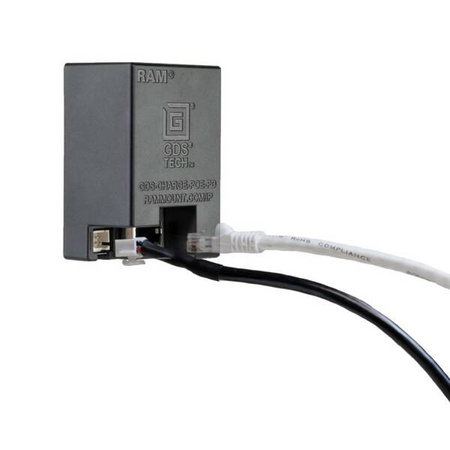

(1) RAM® PoE to PD Charging Module
Product Dimensions

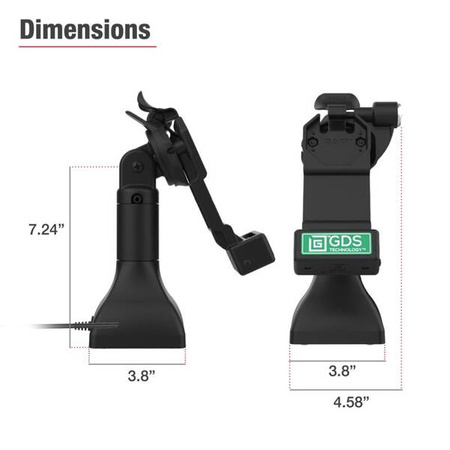

Height from Base to Tilt Bolt: 7.24"|Base Width: 3.8"|Base Depth: 3.8"
Packaging Type
Box
Output Voltage
USB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.7A
Power Output
20W Max
Input Connector
JST Male Connector
Input Cable Length
1.5 Meters
Ask a question
Write your opinion
- View details
The GDS Uni-Conn 7" Locking Tilt & Swivel Dock with PoE (RAM-GDS-DOCKLR-D11-7-U1E) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin Next Gen, IntelliSkin Hard Case, or standard IntelliSkin Thin-Case with a GDS Uni-Conn adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Power is provided to the pogo pins integrated into the GDS Uni-Conn dock via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKLR-D11-7-U1EProducer code793442024399SeriesNewYesHardware Included(1) RAM® PoE to PD Charging ModuleProduct DimensionsHeight from Base to Tilt Bolt: 7.24"|Base Width: 3.8"|Base Depth: 3.8"Packaging TypeBoxOutput VoltageUSB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.7APower Output20W MaxInput ConnectorJST Male ConnectorInput Cable Length1.5 Meters - Recommended products
