GDS® Uni-Conn™ Dock with Release Button
Part#:UPC:
RAM-GDS-DOCK-U4CPU
793442031168
- Features:

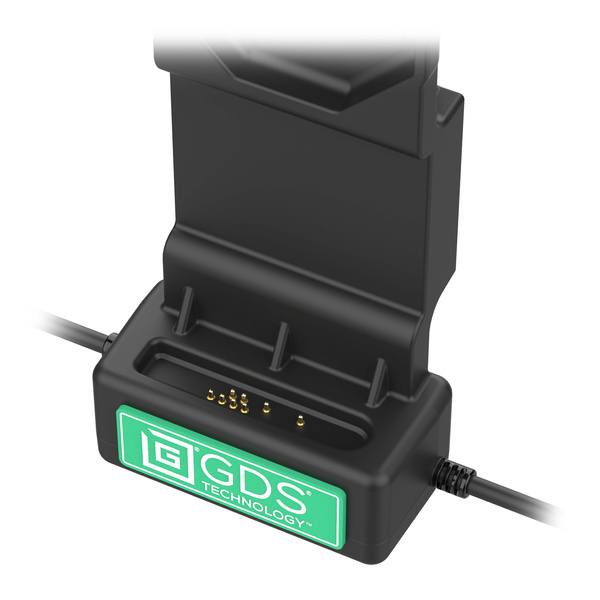

- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

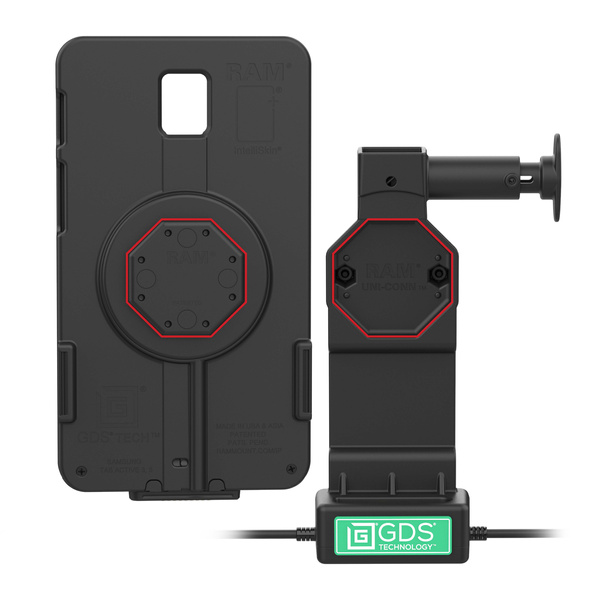

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- USB Type-C Female connector provides high-speed charging to the dock
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCK-U4CPU
Producer code
793442031168
Series
New
Yes
Hardware Included
(2) #8-32 x 5/8" Machine Screws (2) #8-32 Nylock Nuts (1) Cable Clamp Kit
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 3A
Power Output
15W
Input Connector
USB Type-C
Input Cable Length
215mm
Ask a question
Write your opinion
- View details

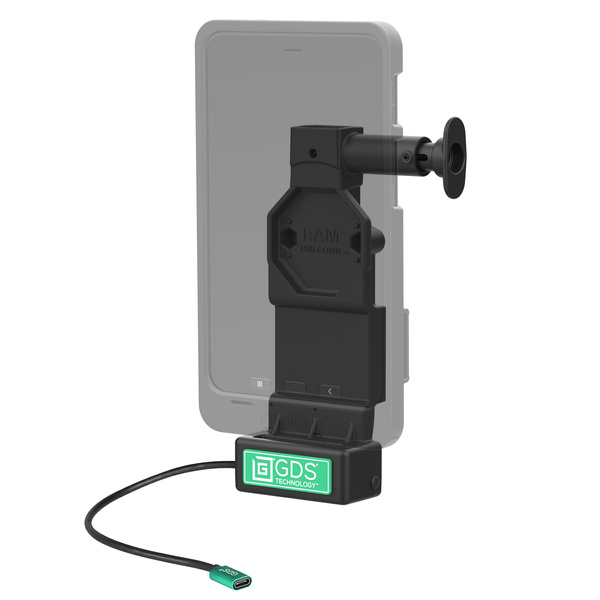

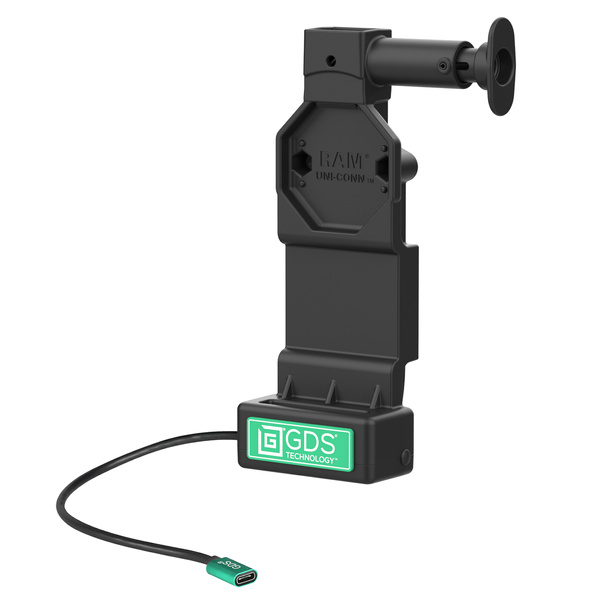

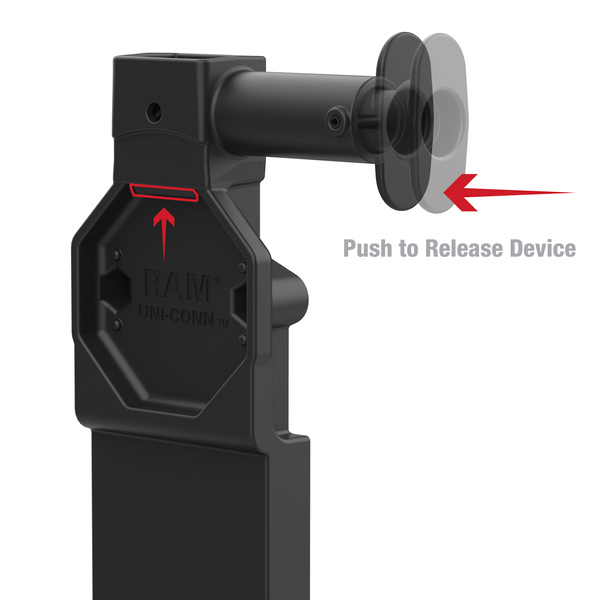

The GDS Uni-Conn Dock with Release Button (RAM-GDS-DOCK-U4CPU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. The GDS Uni-conn dock is backed by a 3-year warranty. Always Protected. Always Connected. One Dock to Connect Them All. BrandSymbolRAM-GDS-DOCK-U4CPUProducer code793442031168SeriesNewYesHardware Included(2) #8-32 x 5/8" Machine Screws (2) #8-32 Nylock Nuts (1) Cable Clamp KitHole Pattern2-Hole AMPS: 1.912"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 3APower Output15WInput ConnectorUSB Type-CInput Cable Length215mm - Recommended products
