New in
GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE
Part#:UPC:
RAM-GDS-DOCKLR-D14-U1E
793442023866
- Features:

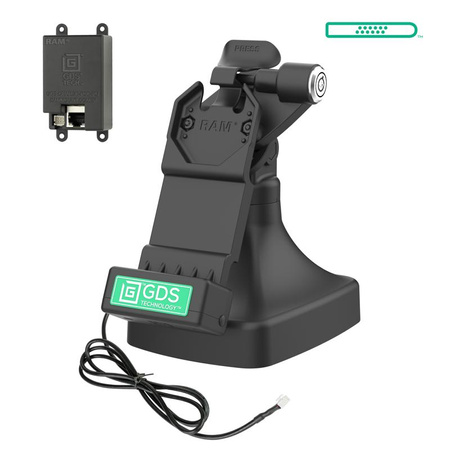

- Key-locking, free-standing, powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter

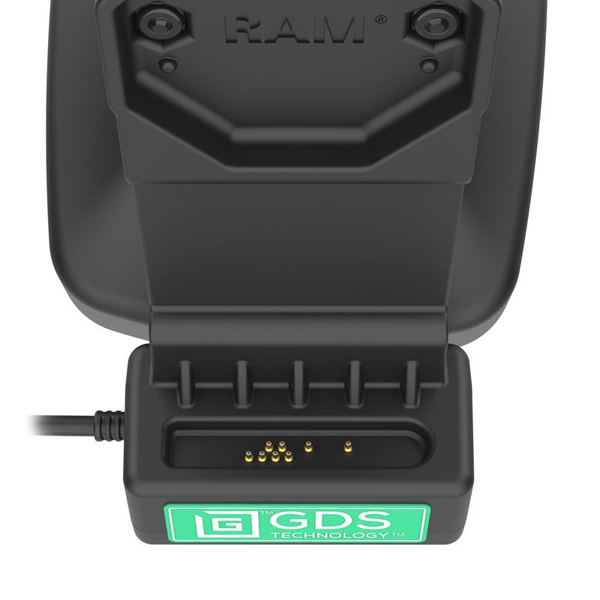

- GDS® Uni-Conn™ dock pogo pins provide Power over Ethernet (PoE) via RJ45 connector

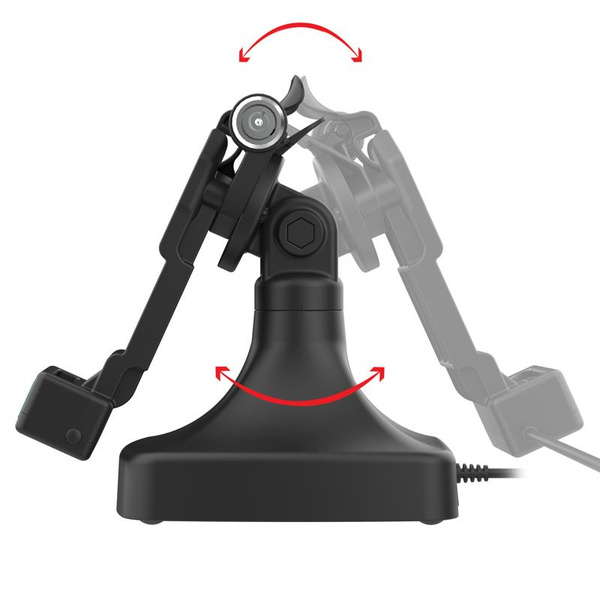

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKLR-D14-U1E
Producer code
793442023866
Series
Product Weight
2944 g
Hardware Included

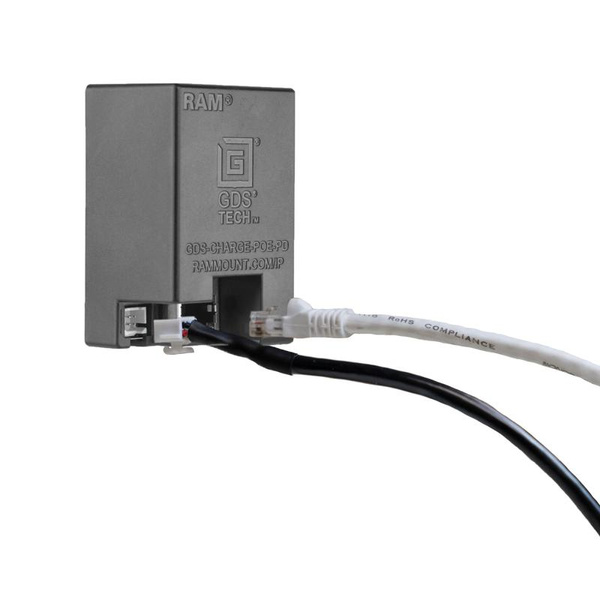

(1) RAM® PoE to PD Charging Module
Product Dimensions

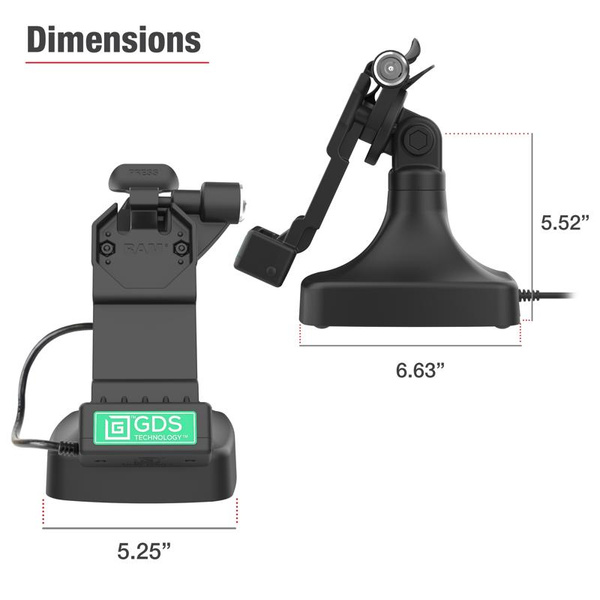

Height from Base to Tilt Bolt: 5.52"|Base Width: 5.13"|Base Depth: 6.63"
Packaging Type
Box
Output Voltage
USB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.7A
USB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.67A
Power Output
24W Max
Input Connector
JST Male Connector
Input Cable Length
1.5 Meters
Component parts
RAM-GDS-CHARGE-POE-PDU
Transfer Speed
10/100Mbps
Ask a question
Write your opinion
- View details

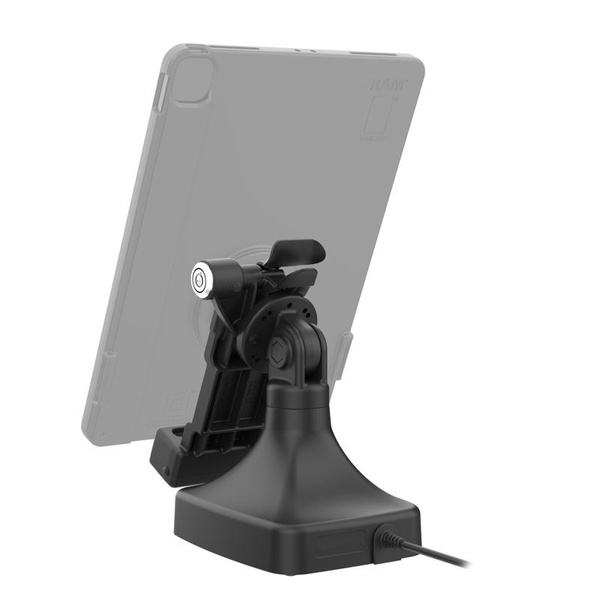

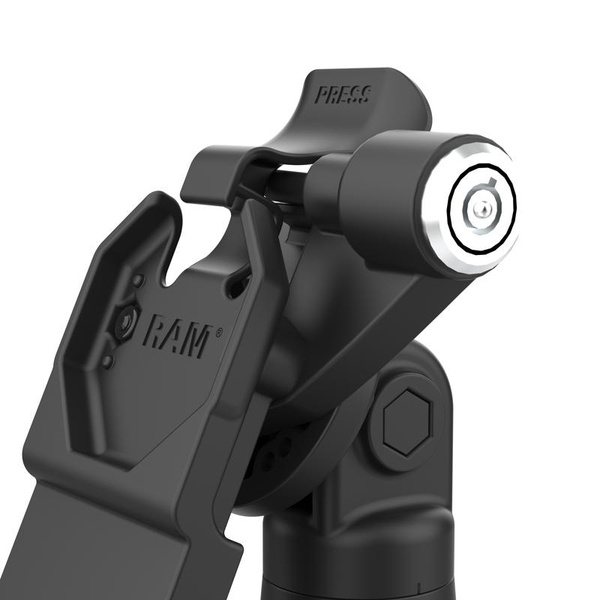

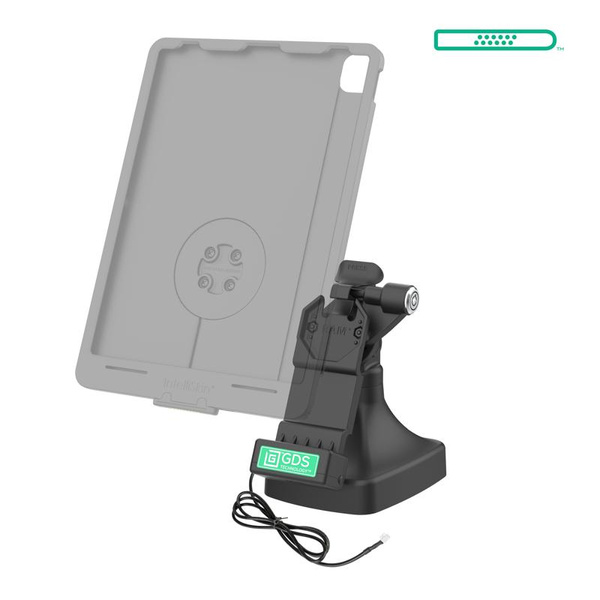

The GDS Uni-Conn Locking Tilt & Swivel Dock with PoE (RAM-GDS-DOCKLR-D14-U1E) is a free-standing, powered dock for devices enclosed in an IntelliSkin Next Gen, IntelliSkin Hard Case, or standard IntelliSkin Thin-Case with a GDS Uni-Conn adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS Uni-Conn dock via RJ45 connection. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. One Dock to Connect Them All Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKLR-D14-U1EProducer code793442023866SeriesProduct Weight2944 gHardware Included(1) RAM® PoE to PD Charging ModuleProduct DimensionsHeight from Base to Tilt Bolt: 5.52"|Base Width: 5.13"|Base Depth: 6.63"Packaging TypeBoxOutput VoltageUSB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.7AUSB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.67APower Output24W MaxInput ConnectorJST Male ConnectorInput Cable Length1.5 MetersComponent partsRAM-GDS-CHARGE-POE-PDUTransfer Speed10/100Mbps - Recommended products
