New in
Part#:UPC:
RAM-GDS-DOCKLR-D11-7-U3E-GRY
793442024603
- Features:
- Light gray, key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
- GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking

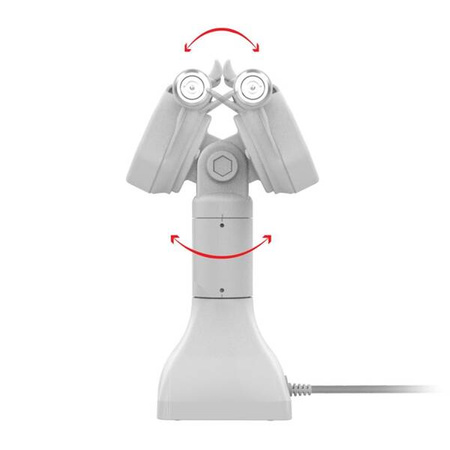

- Dock swivels 180 degrees and enables connected devices to tilt 180 degress
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKLR-D11-7-U3E-GRY
Producer code
793442024603
Series
New
Yes
Hardware Included

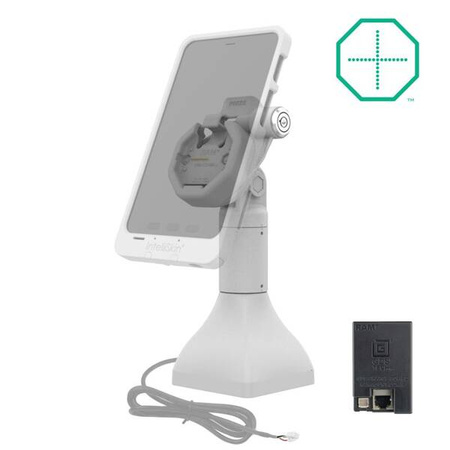

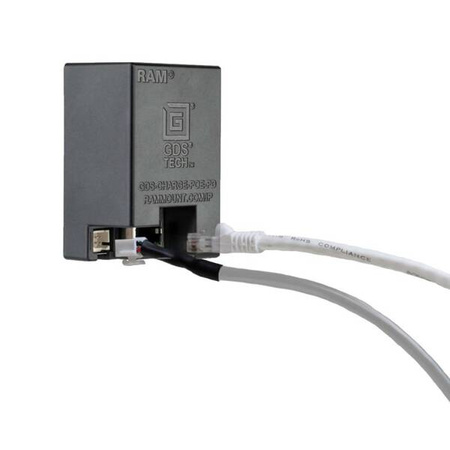

(1) RAM® PoE to PD Charging Module
Product Dimensions

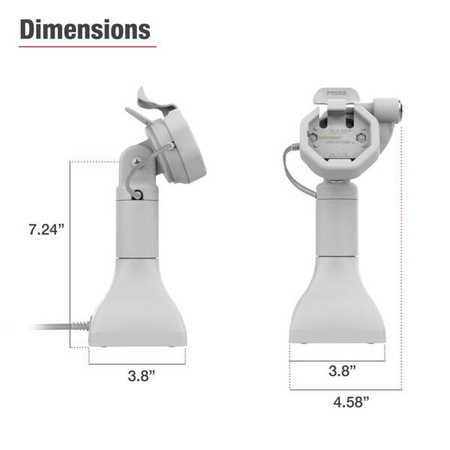

Height from Base to Tilt Bolt: 7.24"|Base Width: 3.8"|Base Depth: 3.8"
Packaging Type
Box
Output Voltage
USB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.7A
Power Output
20W Max
Input Connector
JST Male Connector
Input Cable Length
1.5 Meters
Ask a question
Write your opinion
- View details
The GDS Uni-Conn Powered 7" Locking Tilt & Swivel Dock with PoE - Gray (RAM-GDS-DOCKLR-D11-7-U3E-GRY) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin Thin-Case with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKLR-D11-7-U3E-GRYProducer code793442024603SeriesNewYesHardware Included(1) RAM® PoE to PD Charging ModuleProduct DimensionsHeight from Base to Tilt Bolt: 7.24"|Base Width: 3.8"|Base Depth: 3.8"Packaging TypeBoxOutput VoltageUSB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.7APower Output20W MaxInput ConnectorJST Male ConnectorInput Cable Length1.5 Meters - Recommended products
