GDS® Uni-Conn™ Powered Dock with USB-A & RJ45 Data
Part#:UPC:
RAM-GDS-DOCK-U1CP-RJ45AU
793442022739
- Features:

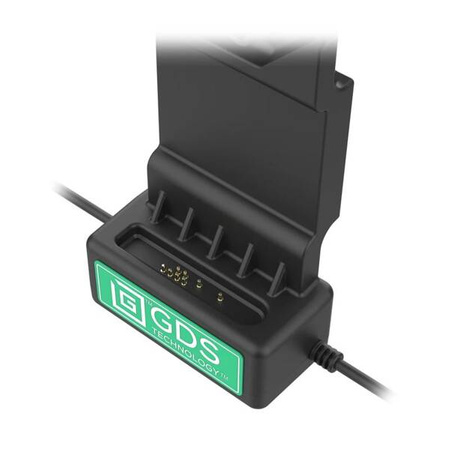

- Clip-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral

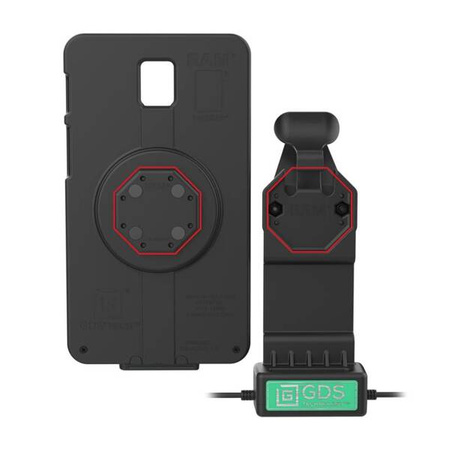

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral
Brand
Symbol
RAM-GDS-DOCK-U1CP-RJ45AU
Producer code
793442022739
Series
Hardware Included

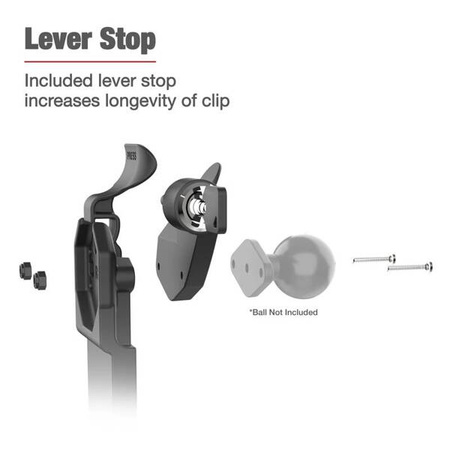

(1) Lever Stop|(2) #8-32 x 1" Machine Screws|(2) #8-32 Nylock Nuts|(1) Cable Clamp Kit
Product Dimensions
Overall Width: 3.16"|Overall Height: 8.44"|Overall Depth: 3.03"
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
Type-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A max
Power Output
15W
Input Connector
USB Type-C (Power In)
Input Cable Length
215mm
Output Connector
(1) USB Type-A & (1) RJ45 Female
Output Cable Length
215mm
Peripheral Output
900mAh
Product Weight
281 g
Ask a question
Write your opinion
- View details

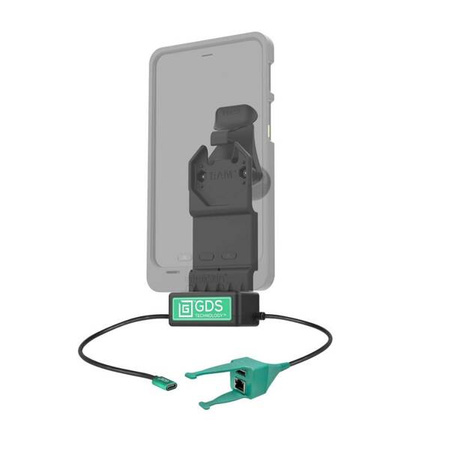

The GDS Uni-Conn Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCK-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet, all with one hand. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All. BrandSymbolRAM-GDS-DOCK-U1CP-RJ45AUProducer code793442022739SeriesHardware Included(1) Lever Stop|(2) #8-32 x 1" Machine Screws|(2) #8-32 Nylock Nuts|(1) Cable Clamp KitProduct DimensionsOverall Width: 3.16"|Overall Height: 8.44"|Overall Depth: 3.03"Hole Pattern2-Hole AMPS: 1.912"MaterialsHigh strength compositePackaging TypePoly BagOutput VoltageType-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A maxPower Output15WInput ConnectorUSB Type-C (Power In)Input Cable Length215mmOutput Connector(1) USB Type-A & (1) RJ45 FemaleOutput Cable Length215mmPeripheral Output900mAhProduct Weight281 g - Recommended products
