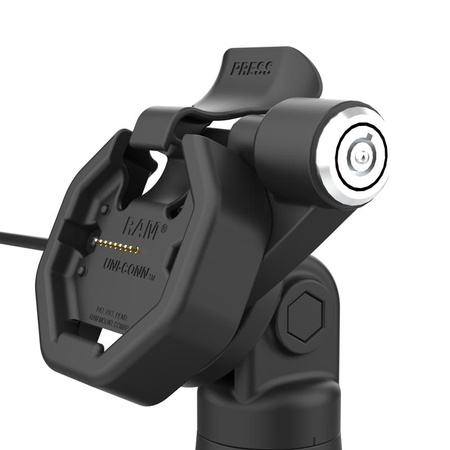

GDS® Uni-Conn™ Powered Locking Tilt & Swivel Dock with USB-C + Data
Part#:UPC:
RAM-GDS-DOCKLR-D14-U3C-2A
793442023965
- Features:
- Key-locking, free-standing Kiosk dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads

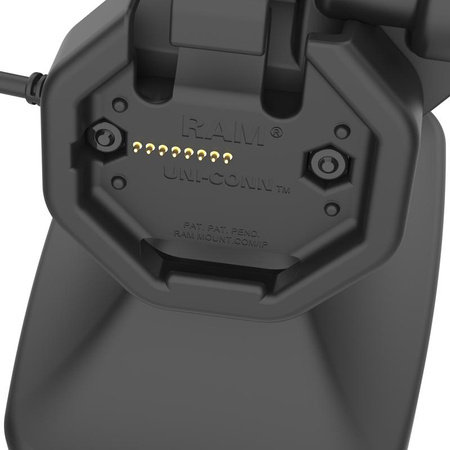

- GDS® connector and pogo pins provide charging via USB-C; Mechanical attachment mechanism allows for quick docking and undocking
- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKLR-D14-U3C-2A
Producer code
793442023965
Series
Product Weight
2522 g
Hardware Included
(1) 1 Meter USB-C 2.0 Male to Male Cable
Product Dimensions
Height from Base to Tilt Bolt: 5.52"|Base Width: 5.13"|Base Depth: 6.63"
Packaging Type
Box
Output Voltage
USB-C Tablets: 5V - 20V @ 3A Max|mUSB Tablets: 9V @ 1.67A Max
Power Output
60W Max
Input Connector
USB Type-C Female
Input Cable Length
1.5 Meters
Ports
(2) USB-A
Ask a question
Write your opinion
- View details
The GDS Uni-Conn Powered Locking Tilt & Swivel Dock with USB-C + Data (RAM-GDS-DOCKLR-D14-U3C-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin Thin-Case with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via USB-C connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. One Dock to Connect Them All Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKLR-D14-U3C-2AProducer code793442023965SeriesProduct Weight2522 gHardware Included(1) 1 Meter USB-C 2.0 Male to Male CableProduct DimensionsHeight from Base to Tilt Bolt: 5.52"|Base Width: 5.13"|Base Depth: 6.63"Packaging TypeBoxOutput VoltageUSB-C Tablets: 5V - 20V @ 3A Max|mUSB Tablets: 9V @ 1.67A MaxPower Output60W MaxInput ConnectorUSB Type-C FemaleInput Cable Length1.5 MetersPorts(2) USB-A - Recommended products
