GDS® Uni-Conn™ Powered PoE Dock with Release Button
GDS® Uni-Conn™ Powered PoE Dock with Release Button
GDS® Uni-Conn™ Powered PoE Dock with Release Button
GDS® Uni-Conn™ Powered PoE Dock with Release Button
GDS® Uni-Conn™ Powered PoE Dock with Release Button
GDS® Uni-Conn™ Powered PoE Dock with Release Button
New in

GDS® Uni-Conn™ Powered PoE Dock with Release Button

Part#:
RAM-GDS-DOCK-U5EU
UPC:
793442031762
+ Add to compareAdd to shopping list
  • Features:
  • Quick-release dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in IntelliSkin® with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • RAM® Compatible™; complete your solution with a diamond ball adapter, arm, and base of choice
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

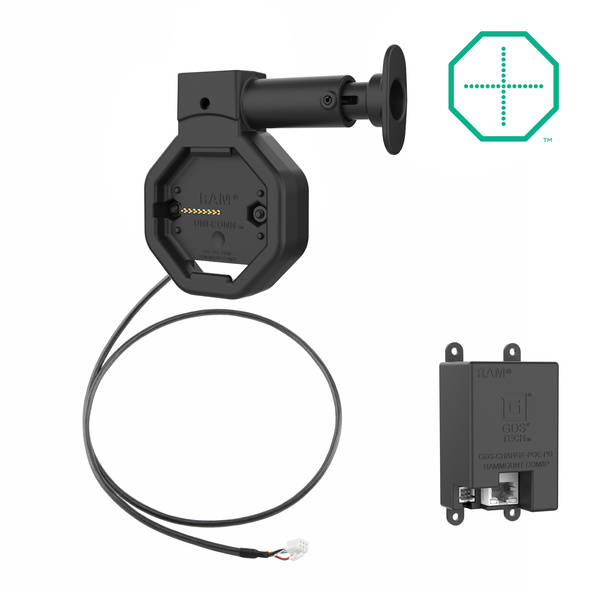

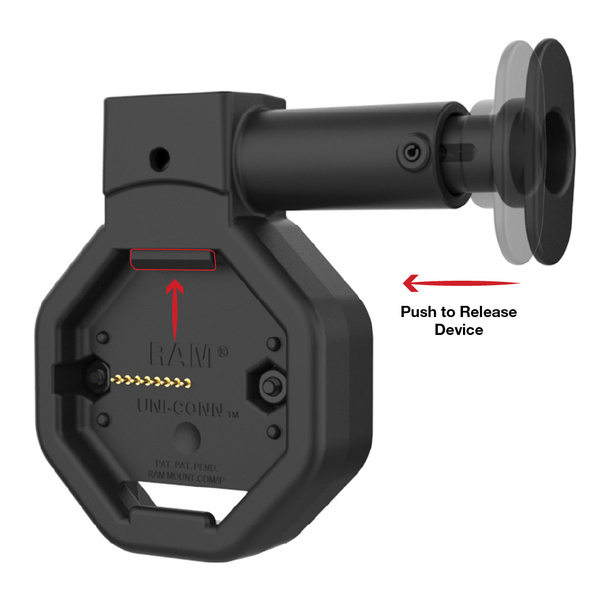

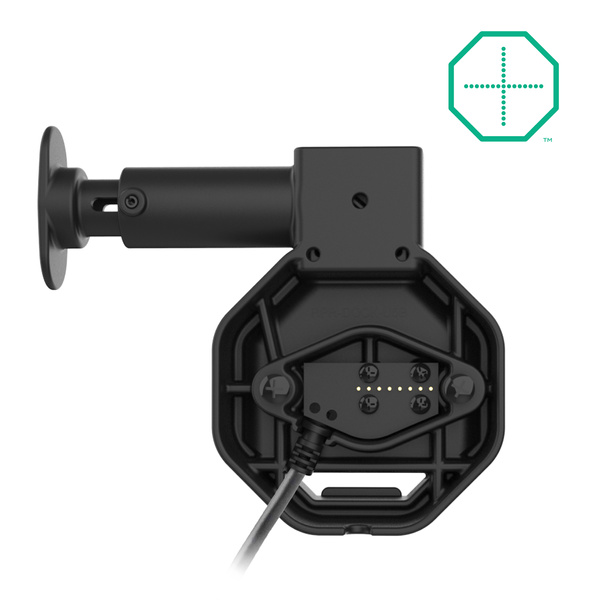

The GDS Uni-Conn Powered PoE Dock with Release Button (RAM-GDS-DOCK-U5EU) is a versatile, quick-release docking solution for devices enclosed in an IntelliSkin with rear pogo pads. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via the JST connector and PoE Adapter. It features an easy docking and undocking process; simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM ball and socket mounting system with a RAM Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS Uni-conn dock is backed by a 3-year warranty. One Dock to Connect Them All Always Protected. Always Connected.
Brand
RAM Mounts
Symbol
RAM-GDS-DOCK-U5EU
Producer code
793442031762
Series
GDS® Tech™ Uni-Conn™
New
Yes
Hardware Included
(1) RAM® PoE to PD Charging Module|(2) #8-32 x 7/8" Machine Screws|(2) #8-32 Nylock Nuts
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
USB PD 3.0:|5V @ 3A|9V @ 2.2A|12V @ 1.67A
Power Output
20W Max
Input Connector
JST Connector
Input Cable Length
800mm
