GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5
Part#:UPC:
RAM-GDS-U1-SAM90-KIT5
793442023415
- Features:

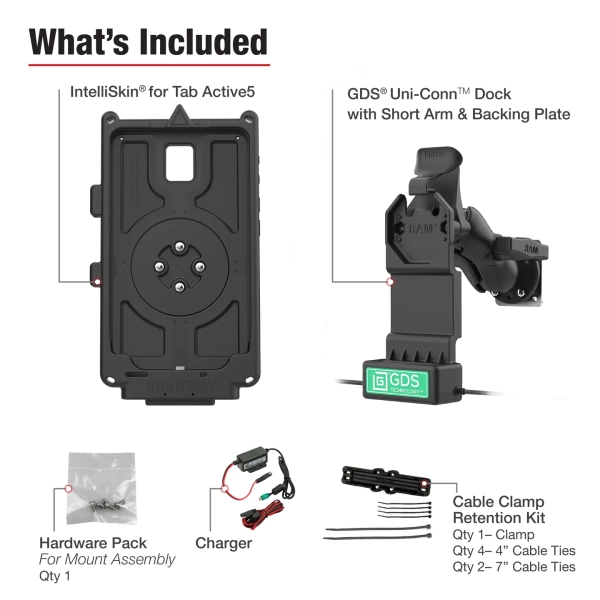

- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Uni-Conn™ dock features an easy device insertion and removal
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-U1-SAM90-KIT5
Producer code
793442023415
Series
Product Weight
1329 g
Hardware Included
Assembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Vehicle Hardwire Charger
Socket To Socket Length
2.5"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Ball Size
C Size (1.5")
Materials
Steel|Marine-grade aluminum|High strength composite
Packaging Type
Box
Output Voltage
5V - 12V @ 3A max
Power Output
15W
Input Connector
USB Type-C (Power In)
Input Cable Length
215mm
Output Connector
(1) USB Type-C & (1) USB Type-A (Peripheral)
Output Cable Length
215mm
Peripheral Output
900mAh (per port)
Component parts
RAM-138U-B
RAM-GDS-CAB-CLAMP2U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCK-U1CP-CAU
RAM-GDS-SKIN-SAM90-NG
RAM-GDS-U1U
RAM-138-B-225B2U
Samsung Tab Active5
Ask a question
Write your opinion
- View details

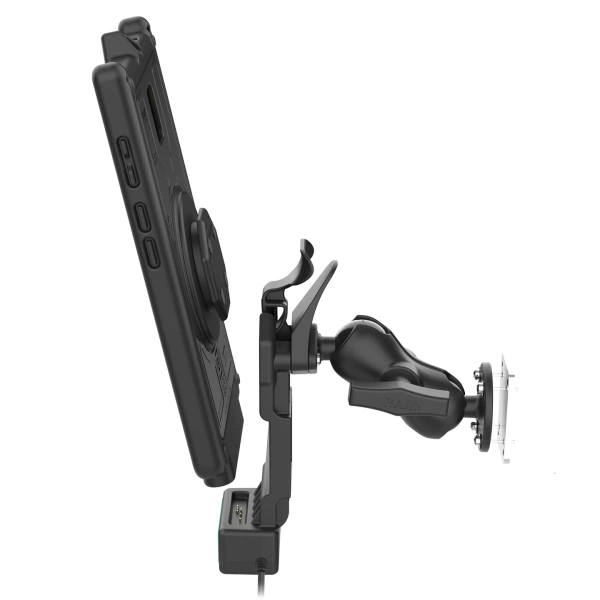

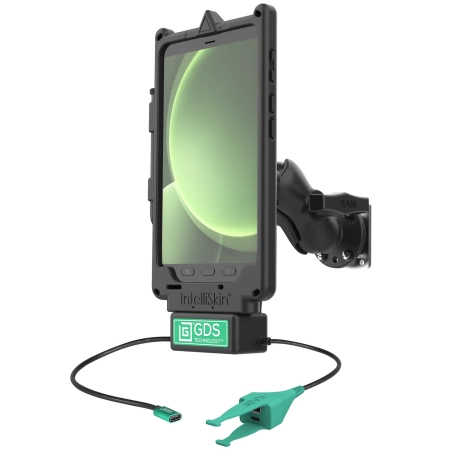

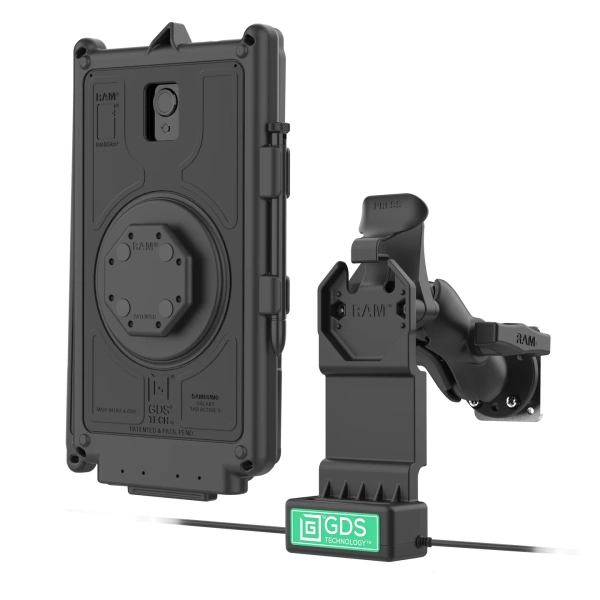

The GDS Uni-Conn Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS Uni-Conn dock, Uni-Conn adapter, IntelliSkin for the Tab Active5, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS Uni-Conn is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All BrandSymbolRAM-GDS-U1-SAM90-KIT5Producer code793442023415SeriesProduct Weight1329 gHardware IncludedAssembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Vehicle Hardwire ChargerSocket To Socket Length2.5"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterBall SizeC Size (1.5")MaterialsSteel|Marine-grade aluminum|High strength compositePackaging TypeBoxOutput Voltage5V - 12V @ 3A maxPower Output15WInput ConnectorUSB Type-C (Power In)Input Cable Length215mmOutput Connector(1) USB Type-C & (1) USB Type-A (Peripheral)Output Cable Length215mmPeripheral Output900mAh (per port)Component partsRAM-138U-BRAM-GDS-CAB-CLAMP2URAM-GDS-CHARGE-V7CURAM-GDS-DOCK-U1CP-CAURAM-GDS-SKIN-SAM90-NGRAM-GDS-U1URAM-138-B-225B2U - CompatibilitySamsung Tab Active5
