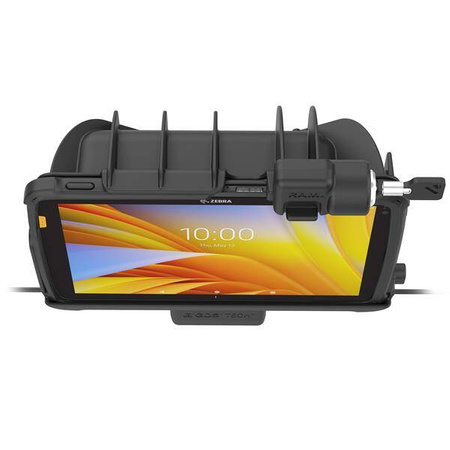

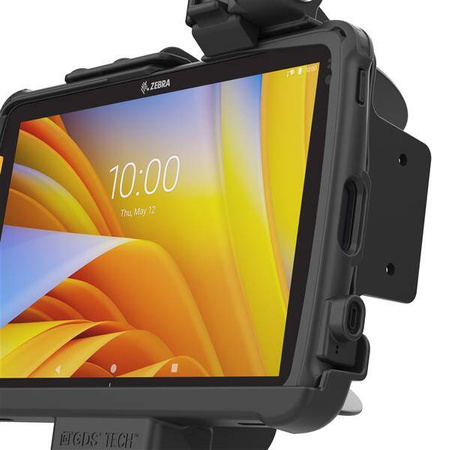

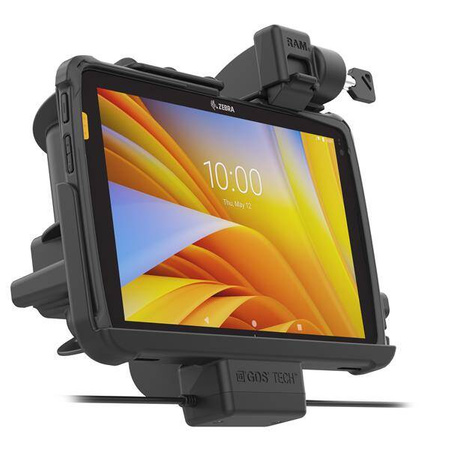

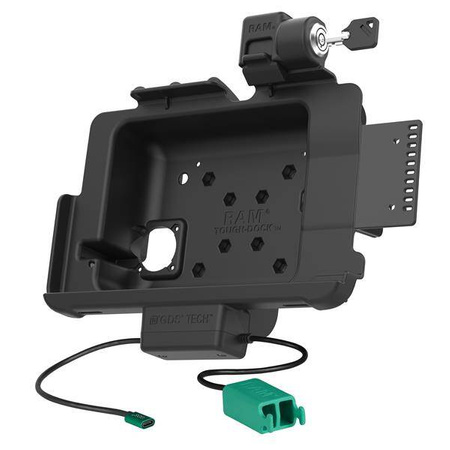

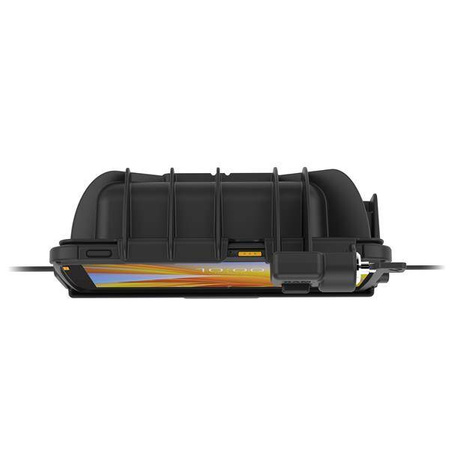

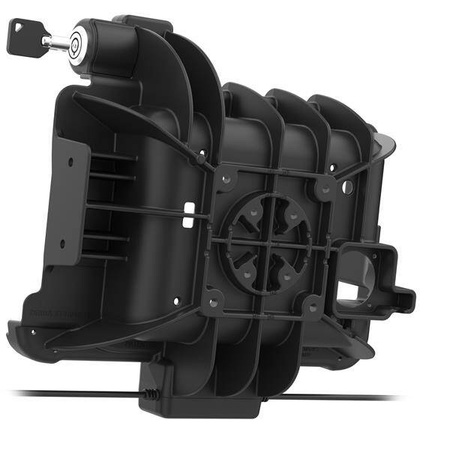

Locking GDS® Power + Dual USB Dock for Zebra ET4x 10" with IntelliSkin®
Part#:UPC:
RAM-GDS-DOCKL-ZE21PD2U
793442010330
- Features:
- Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A connector for adding up to 2 peripherals; M
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKL-ZE21PD2U
Producer code
793442010330
Series
Product Weight
875 g
Hardware Included
(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 20V @ 3A
Power Output
60W
Input Connector
USB Type-C
Input Cable Length
215mm
Output Connector
(2) USB 2.0 Type A
Output Cable Length
215mm
Transfer Speed
12Mbps
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|FCC|CE|ICES|UKCA
Peripheral Output
900mAh (per port)
Zebra ET40 10" Tablet with IntelliSkin® Next Gen
Zebra ET45 10" Tablet with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details
Featuring GDS Technology for data and charging capabilities and a key lock for theft deterrence, the GDS Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin Next Generation protective sleeve allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device. BrandSymbolRAM-GDS-DOCKL-ZE21PD2UProducer code793442010330SeriesProduct Weight875 gHardware Included(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 20V @ 3APower Output60WInput ConnectorUSB Type-CInput Cable Length215mmOutput Connector(2) USB 2.0 Type AOutput Cable Length215mmTransfer Speed12MbpsCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationRoHS|WEEE|FCC|CE|ICES|UKCAPeripheral Output900mAh (per port) - CompatibilityZebra ET40 10" Tablet with IntelliSkin® Next GenZebra ET45 10" Tablet with IntelliSkin® Next Gen
