Part#:UPC:
RAM-D-101U-C-247-4
793442014277
- Features:
- D Size ball with 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes 4" clamping base for posts and a short length, D size RAM® double socket arm with an overall length of 5.1" and socket-to-socket length of 3.6"; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-D-101U-C-247-4
Producer code
793442014277
Product Weight
1619 g
1642 g
Hardware Included
(2) 5/16"-18 x 3" Machine Screws|(2) 5/16"-18 Nylock Nuts
Clamp Range
4" max width
Socket-to-Socket Length
3.6"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 2721.55 gramss|Heavy-Duty Use: 2267.96 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Flat Edge Clamp
Ball & Socket Size
D Size 2.25" (Holds 2721.55 gramss)
Socket Arm Length
Short Arm
Vehicle Type
Forklift
Lift Truck
Component parts
RAM-D-201U-C
RAM-D-247U-4-IN1
RAM-D-254U
Socket To Socket Length
3.6"
Ball Size
D Size (2.25")
Ask a question
Write your opinion
- View details

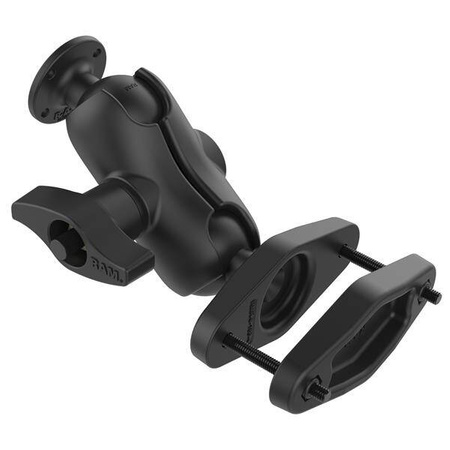

This ideal forklift mount consists of a D size short double socket arm, a round 2.5" diameter round D size base with the universal AMPS hole pattern and 4" clamp base for square post mounting on forklifts. The clamp base will wrap around a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. RAM Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This D size forklift mount is designed for heavy duty monitor mounting for forklifts, as well as rugged tablets which could be paired with accessory brackets to support keyboards and other peripherals. BrandSymbolRAM-D-101U-C-247-4Producer code793442014277Product Weight1619 g1642 gHardware Included(2) 5/16"-18 x 3" Machine Screws|(2) 5/16"-18 Nylock NutsClamp Range4" max widthSocket-to-Socket Length3.6"Hole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HolePlate Size2.5" DiameterWeight CapacityStandard Use: 2721.55 gramss|Heavy-Duty Use: 2267.96 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeFlat Edge ClampBall & Socket SizeD Size 2.25" (Holds 2721.55 gramss)Socket Arm LengthShort ArmVehicle TypeForkliftLift TruckComponent partsRAM-D-201U-CRAM-D-247U-4-IN1RAM-D-254USocket To Socket Length3.6"Ball SizeD Size (2.25") - Recommended products
