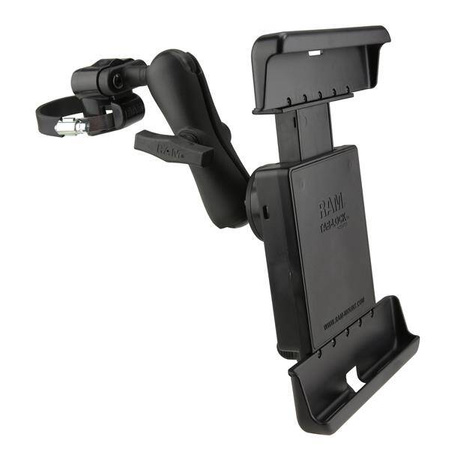

RAM® ATV/UTV Rail Mount for 10" Tablets with Heavy Duty Cases
RAM® ATV/UTV Rail Mount for 10" Tablets with Heavy Duty Cases
RAM® ATV/UTV Rail Mount for 10" Tablets with Heavy Duty Cases
RAM® ATV/UTV Rail Mount for 10" Tablets with Heavy Duty Cases

RAM® ATV/UTV Rail Mount for 10" Tablets with Heavy Duty Cases

  • Features:
  • Spring-loaded holder secures most 10" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes rail and bar base for UTVs and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price276,52 €
321,94 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
This heavy duty ATV/UTV mount is the perfect solution for securing most 10" tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose clamp base accommodates most common tubing sizes on UTV's and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt. The included RAM Tab-Lock tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Symbol
RAM-231Z-2-TABL25U
Producer code
793442014338
Series
Warranty
Product Weight
1270 g
Hardware Included
Assembly Hardware|(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt
Holder Dimensions
Height Range: 9.64" - 12.32"|Width Range: 6.13" - 7.4"|Depth Range: .13" - .7"
Clamp Range
U-Bolt: .5" - 1.25" diameter|Strap Clamp: 1.57" - 3.15" diameter
Socket-to-Socket Length
4.66"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"|1.57" - 3.15"
Device or Accessory Type
Tablet
Vehicle Type
ATV
UTV
Component parts
RAM-103U
RAM-231Z-2U
RAM-HOL-TABL25U
Compatibility
Dell Venue 11 Pro
HP Pro Slate 10.1
Lenovo IdeaTab Lynx K3011
Microsoft Surface 2
Microsoft Surface 3
Microsoft Surface Pro
Microsoft Surface Pro 2
Samsung Galaxy Tab 4 10.1 with Case
Samsung Galaxy Tab A 10.1 (2019) with Case
Samsung Galaxy Tab E 9.6 with Case
Samsung Galaxy Tab S 10.5 with Case
Sony Vaio Tap 11
Zebra ET50 10"
Zebra ET55 10"
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
