RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud
RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud
RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud
RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud
RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud
RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud

RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud

Part#:
RAM-B-174-202AU
UPC:
793442901782
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price108,21 €
134,03 €(Discount 18%)
110,12 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

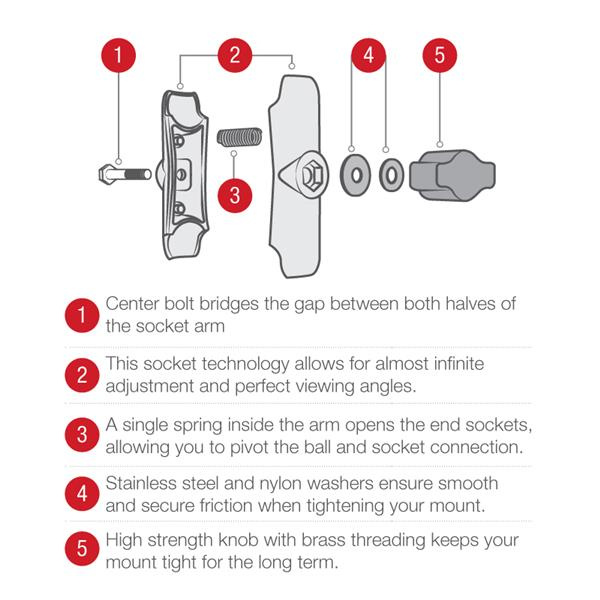

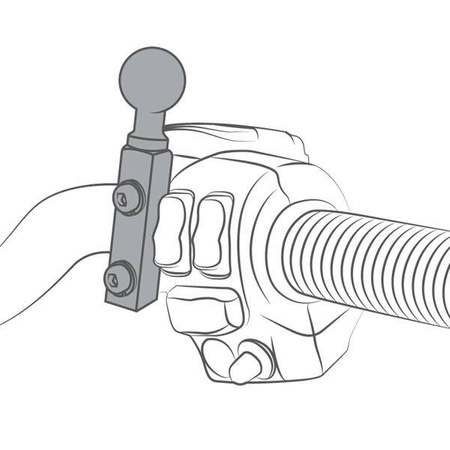

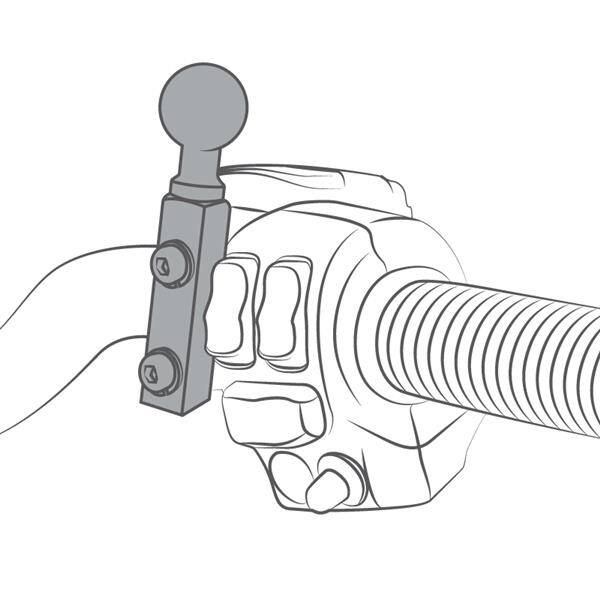

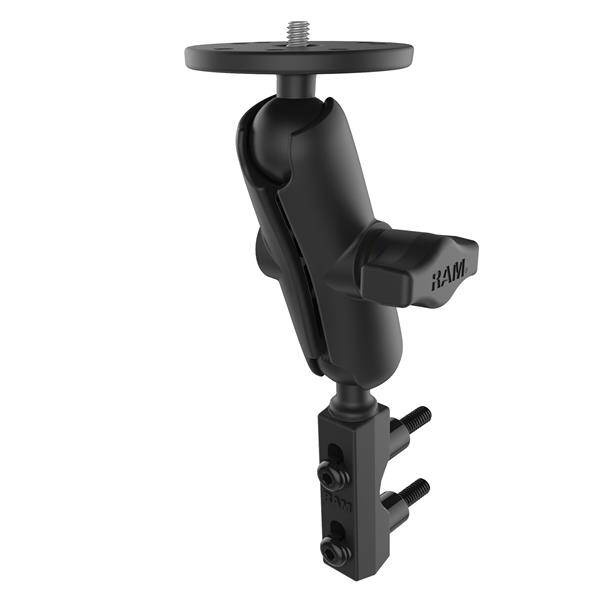

The RAM-B-174-202AU consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and 2.5" diameter round base adapter that contains a 1/4"-20 male camera thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included 1/4"-20 threaded steel stud, centered, with round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-174-202AU
Producer code
793442901782
Product Weight
231 g
Hardware Included
(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt S
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Thread Pitch
1/4''-20
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Camera
Vehicle Type
Motorcycle
Component parts
RAM-B-201U
RAM-B-202AU
RAM-B-309-7U
Socket To Socket Length
3"
Ball Size
B Size (1")
Cameras that contain 1/4"-20 Female Threaded Hole
