RAM® Curved Extension Base with Ball & Mounting Hardware

RAM® Curved Extension Base with Ball & Mounting Hardware

Part#:
RAM-B-125B-G1U
UPC:
793442913631
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price39,88 €
46,91 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

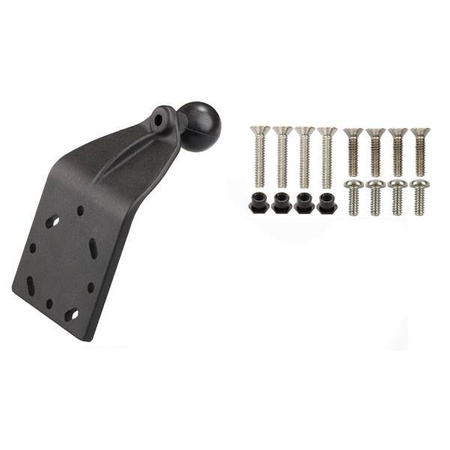

The RAM RAM-B-125B-G1U, extension base includes a 1" rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5'' above the 1" ball (to the bottom of the connection section of the plate).
Brand
RAM Mounts
Symbol
RAM-B-125B-G1U
Producer code
793442913631
Warranty
RAM MOUNT
Product Weight
91 g
Hardware Included
(4) #6-32 x 5/8" Machine Screws|(4) #6-32 x 7/8" Machine Screws|(4) #6-32 x 3/8" Machine Screws|(4) #6-32 Nut Inserts
Hole Pattern
Various AMPS Hole Patterns|See Drawing
AMPS 4-Hole
AMPS 2-Hole
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Diameter Range
.625" - 1.25"
Device or Accessory Type
GPS
Component parts
RAM-B-125BU
RAM-S-G1U
Compatibility
Garmin GPSMAP 172-250
Garmin StreetPilot III
Ball Size
B Size (1")
