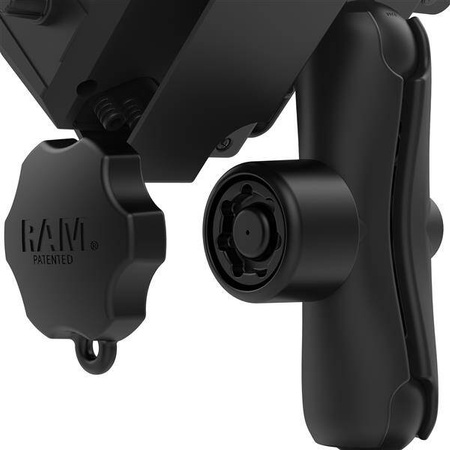

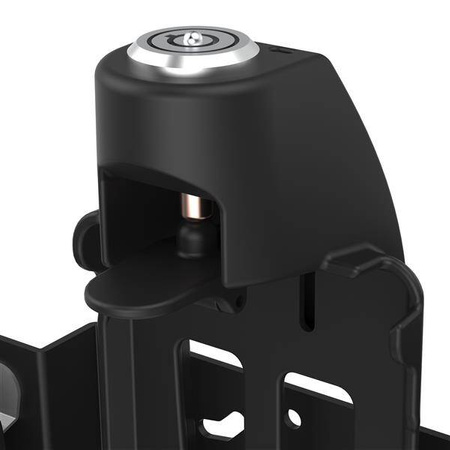

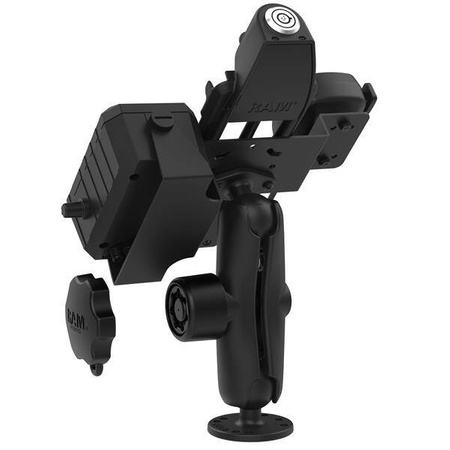

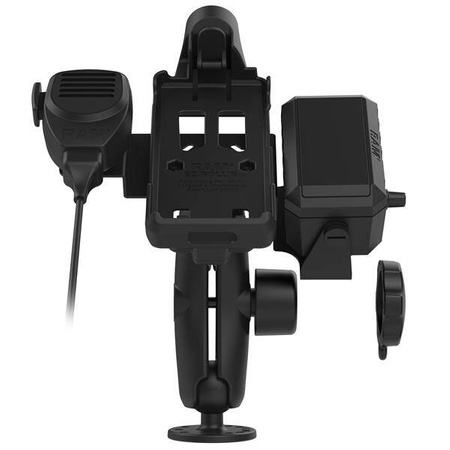

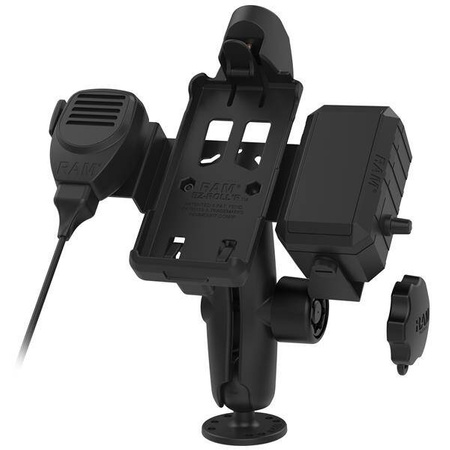

RAM® Double Ball Mount for Sonim XP10 with Speaker & Hardwire Bundle
Part#:UPC:
RAM-138-S-SNM4PL-V7B1U
793442935237
- Features:
- Bundle for Sonim XP10 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
- Powered RAM® EZ-Roll'r™ form-fit dock provides a perfect fit for your device while keeping the device charged
- Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
Brand
Symbol
RAM-138-S-SNM4PL-V7B1U
Producer code
793442935237
Series
Product Weight
1760 g
1905 g
1928 g
Hardware Included
Assembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) 10-pin to 3.5 Audio Adapter Cable|(1) Modular Hardwire Charger
Speaker Specifications
Independently adjustable volume knob|Max volume level: 100dB|8Ω / 10W rated speaker
Socket To Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite|Powder-Coated Steel
Packaging Type
Poly Bag
Input Voltage
10-30VDC
Output Voltage
5-9VDC*
Output Current
2.5A max
Input Connector
Charger: Female USB Type A
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
.2 Meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
Certifications
E-Mark Certification|RCM Certification|IEC/UL 62368-1
Component parts
RAM-101-MIC3U
RAM-138U
RAM-GDS-CHARGE-V7B1U
RAM-HOL-SNM4PLU
RAP-CAB-SNM1U
RAP-S-KNOB5U
Sonim XP10
Ask a question
Write your opinion
- View details
This Sonim XP10 bundle includes the RAM EZ-Roll'r Powered Key Locking Dock for Sonim XP10, double ball mount with RAM Pin-Lock Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. BrandSymbolRAM-138-S-SNM4PL-V7B1UProducer code793442935237SeriesProduct Weight1760 g1905 g1928 gHardware IncludedAssembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) 10-pin to 3.5 Audio Adapter Cable|(1) Modular Hardwire ChargerSpeaker SpecificationsIndependently adjustable volume knob|Max volume level: 100dB|8Ω / 10W rated speakerSocket To Socket Length4.66"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterPlate Size2.5" DiameterBall SizeC Size (1.5")Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminum|High strength composite|Powder-Coated SteelPackaging TypePoly BagInput Voltage10-30VDCOutput Voltage5-9VDC*Output Current2.5A maxInput ConnectorCharger: Female USB Type AInput Cable Length1.2 Meters including 2 Pole Flat Marine ConnectorOutput Cable Length.2 MetersOperating Temperature-10°C to +70°CStorage Temperature-40°C to +70°CRegulatoryOver Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, ICCertificationsE-Mark Certification|RCM Certification|IEC/UL 62368-1Component partsRAM-101-MIC3URAM-138URAM-GDS-CHARGE-V7B1URAM-HOL-SNM4PLURAP-CAB-SNM1URAP-S-KNOB5U - CompatibilitySonim XP10
