Part#:UPC:
RAM-138-S-SNM1PL-V7B1U
793442410062
- Features:
- Bundle for Sonim XP5s includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
- Spring-loaded, powered RAM® EZ-Roll’r™ style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged
- Key lock and RAM® Pin-Lock™ for theft deterrence
- RAM® Components backed by lifetime warranty; cradle backed by a 3-year warranty
- Spring-loaded, powered RAM® EZ-Roll'r™ style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged
Brand
Symbol
RAM-138-S-SNM1PL-V7B1U
Producer code
793442410062
Series
Product Weight
1882 g
1919 g
Hardware Included
Assembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) 10-pin to 3.5 Audio Adapter Cable|(1) Modular Hardwire Charger
Speaker Specifications
Independently adjustable volume knob|Max volume level: 100dB|8Ω / 10W rated speaker
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite|Powder-Coated Steel
Packaging Type
Poly Bag
Input Voltage
10V - 30V DC
10-30VDC
Output Voltage
5-9VDC
5-9VDC*
Output Current
2.5A max
Input Connector
Charger: Female USB Type A
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
.2 Meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Compliance
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
E-Mark Certification|RCM Certification|IEC/UL 62368-1
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Phone
Vehicle Type
Car & Truck
Component parts
RAM-101-MIC3U
RAM-138U
RAM-GDS-CHARGE-V7B1U
RAM-HOL-SNM1PLU
RAM-MIC-A02
RAP-CAB-SNM1U
RAP-S-KNOB5U
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
Sonim XP5s
Ask a question
Write your opinion
- View details

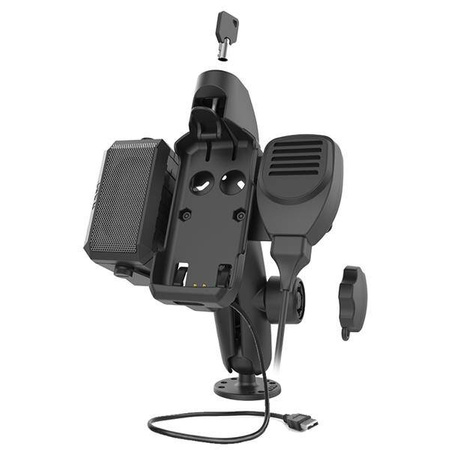

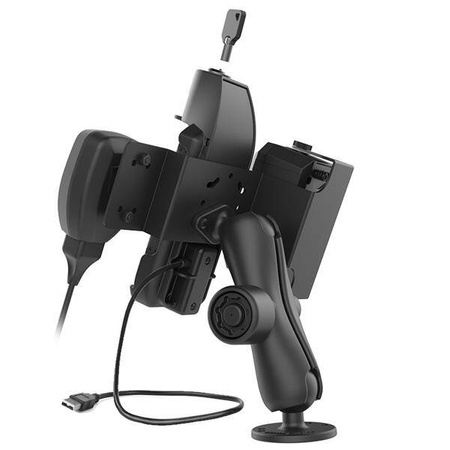

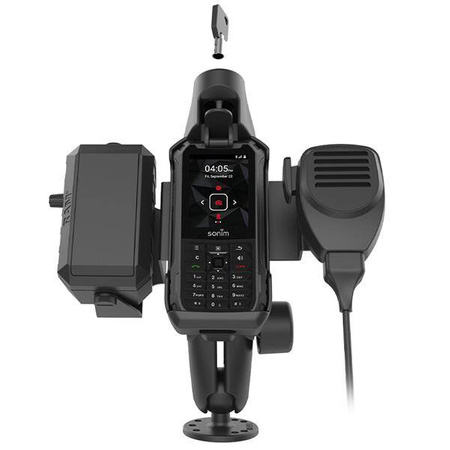

This Sonim XP5s bundle includes the RAM EZ-Roll'r Powered Key Locking Cradle for Sonim XP5s, double ball mount with RAM Pin-Lock Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5s and keeps your peripherals together and connected as one unit. The powered cradle features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. BrandSymbolRAM-138-S-SNM1PL-V7B1UProducer code793442410062SeriesProduct Weight1882 g1919 gHardware IncludedAssembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) 10-pin to 3.5 Audio Adapter Cable|(1) Modular Hardwire ChargerSpeaker SpecificationsIndependently adjustable volume knob|Max volume level: 100dB|8Ω / 10W rated speakerSocket-to-Socket Length4.66"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterPlate Size2.5" DiameterWeight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminum|High strength composite|Powder-Coated SteelPackaging TypePoly BagInput Voltage10V - 30V DC10-30VDCOutput Voltage5-9VDC5-9VDC*Output Current2.5A maxInput ConnectorCharger: Female USB Type AInput Cable Length1.2 Meters including 2 Pole Flat Marine ConnectorOutput Cable Length.2 MetersOperating Temperature-10°C to +70°CStorage Temperature-40°C to +70°CComplianceOver Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture ResistantCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationE-Mark Certification|RCM Certification|IEC/UL 62368-1Mounting TypeDrill DownBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypePhoneVehicle TypeCar & TruckComponent partsRAM-101-MIC3URAM-138URAM-GDS-CHARGE-V7B1URAM-HOL-SNM1PLURAM-MIC-A02RAP-CAB-SNM1URAP-S-KNOB5USocket To Socket Length4.66"Ball SizeC Size (1.5")RegulatoryOver Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC - CompatibilitySonim XP5s
