RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware

RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price113,32 €
117,85 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

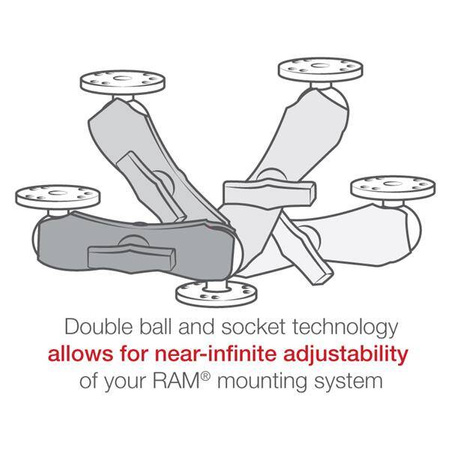

    The RAM-101-G2U consists of a 6 inch double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the RAM-101-G2U mount to your optimum viewing position. Compatible with Garmin marine devices found under "compatibility".
    Symbol
    RAM-101-G2U
    Producer code
    793442000645
    Product Weight
    508 g
    Hardware Included
    (3) #6-32 x 3/8" Machine Screws|(3) #6-32 Nut Inserts

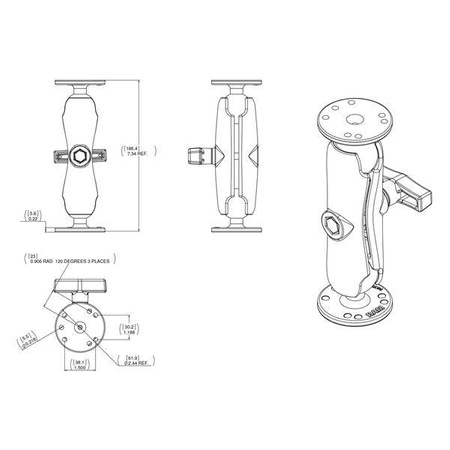

    Product Dimensions
    Overall Height: 7.35"
    Socket-to-Socket Length
    4.66"
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
    AMPS 4-Hole
    3-Hole 120 Degree (Small)
    Plate Size
    2.5" Diameter
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Drill Down
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Socket Arm Length
    Medium Arm
    Device or Accessory Type
    Fishfinder
    Chartplotter
    Vehicle Type
    Power Boat
    Kayak
    Component parts
    RAM-201U
    RAM-202-G2U
    RAM-202U
    Socket To Socket Length
    4.66"
    Ball Size
    C Size (1.5")
