RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware

RAM® Double Ball Mount with Garmin Fishfinder #8-32 Hardware

Part#:
RAM-101-G4
UPC:
793442933172
+ Add to compareAdd to shopping list
  • Features:
  • Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible Garmin fishfinder hardware

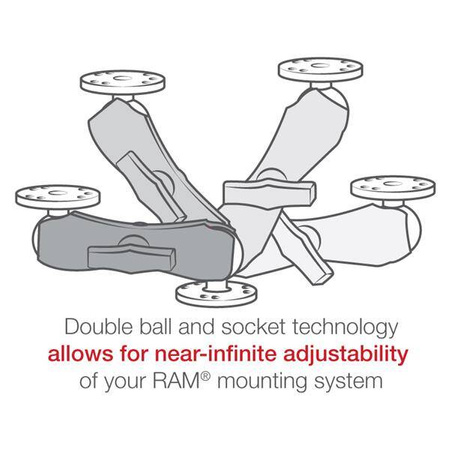

  • Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price124,20 €
124,20 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
The RAM-101-G4 consists of a 6 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the back of the Garmin echo. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo to the RAM Mount. See other compatible Garmin devices under "compatibility".
Brand
RAM Mounts
Symbol
RAM-101-G4
Producer code
793442933172
Product Weight
340 g
Hardware Included
(3) #8-32 x 5/8" Machine Screws|(3) #8-32 Nylock Nuts

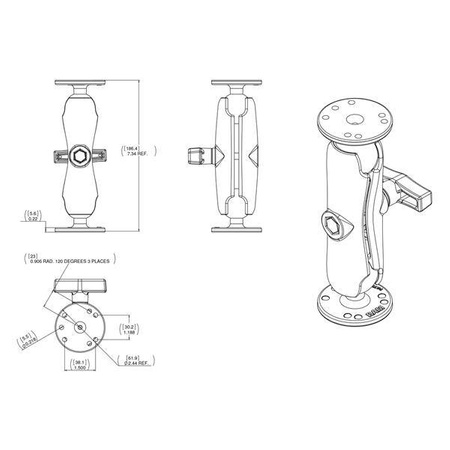

Product Dimensions
Overall Height: 7.35"
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Retail Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-201U
RAM-202-G4U
RAM-202U
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Garmin ECHOMAP Plus 42cv
Garmin ECHOMAP Plus 43cv
Garmin ECHOMAP Plus 44cv
Garmin ECHOMAP Plus 45cv
Garmin Striker 4
Garmin Striker 4dv
Garmin Striker Plus 4cv
Garmin Striker Vivid 4cv
Garmin echo 100
Garmin echo 150
Garmin echo 300c
Garmin ECHOMAP UHD2 6"
