RAM® Double Ball Yoke Clamp Mount with Garmin Mounting Hardware
RAM® Double Ball Yoke Clamp Mount with Garmin Mounting Hardware
RAM® Double Ball Yoke Clamp Mount with Garmin Mounting Hardware
RAM® Double Ball Yoke Clamp Mount with Garmin Mounting Hardware

RAM® Double Ball Yoke Clamp Mount with Garmin Mounting Hardware

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price112,41 €
116,04 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

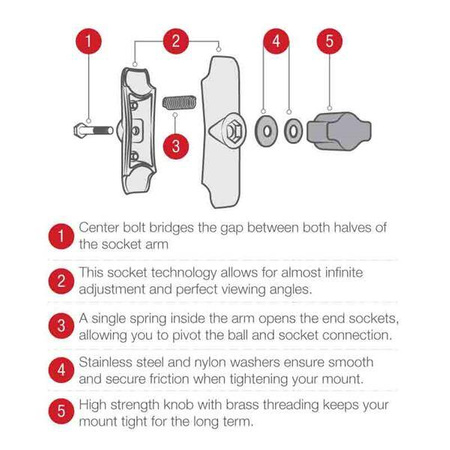

    The RAM yoke mount consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety of third party cradles and mounts. The base fits a rail diameter from 5/8" to a maximum of 1 1/4". The 1" rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails. The rail does not need to be perfectly round to mount this base.
    Symbol
    RAM-B-121-G1U
    Producer code
    793442112119
    Product Weight
    354 g
    Hardware Included
    (4) #6-32 x 5/8" Machine Screws|(4) #6-32 x 7/8" Machine Screws|(4) #6-32 x 3/8" Machine Screws|(4) #6-32 Nut Inserts
    Clamp Range
    .625" - 1.25"
    Socket-to-Socket Length
    3"
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
    AMPS 4-Hole
    3-Hole 120 Degree (Small)
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .625" - 1.25"
    Device or Accessory Type
    GPS
    Vehicle Type
    Aircraft
    Component parts
    RAM-B-121BU
    RAM-B-201U
    RAM-B-202-G1U
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
