RAM® Double Ball Yoke Clamp Mount with Round Plate - Short

RAM® Double Ball Yoke Clamp Mount with Round Plate - Short

Part#:
RAM-B-121-A-202
UPC:
793442937576
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price113,95 €
115,87 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

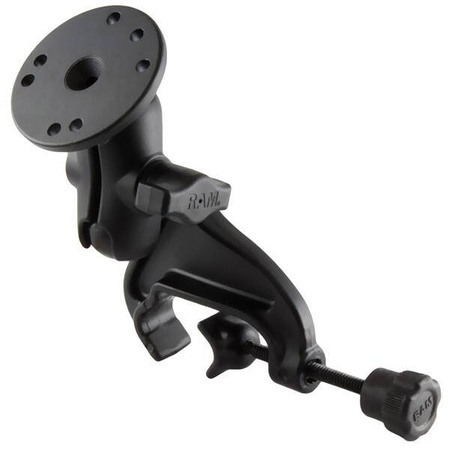

The RAM-B-121-A-202 consists of a yoke clamp base, SHORT length double socket arm and round 2.5" base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-121-A-202
Producer code
793442937576
Product Weight
308 g
Clamp Range
.625" - 1.25"
Socket-to-Socket Length
1.75"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
AMPS 4-Hole
3-Hole 120 Degree (Small)
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Retail Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Short Arm
Diameter Range
.625" - 1.25"
Vehicle Type
Aircraft
Component parts
RAM-B-121BU
RAM-B-201U-A
RAM-B-202U
Socket To Socket Length
1.75"
Ball Size
B Size (1")
