Part#:UPC:
RAM-111U
793442000157
- Features:
- Complete flat surface, drill-down mounting solution with an overall height of 7.35"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Brand
Symbol
RAM-111U
Producer code
793442000157
Product Weight
572 g
608 g

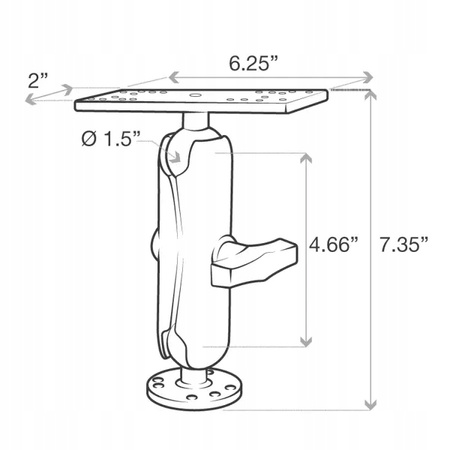

Product Dimensions
Overall Height: 7.35"
Socket-to-Socket Length
4.66"
Hole Pattern

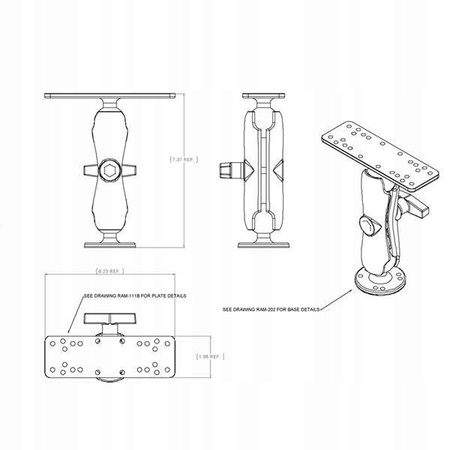

4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|See Drawing
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
Rectangular Plate: 6.25" x 2"|Round Plate: 2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-111BU
RAM-201U
RAM-202U
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Garmin ECHOMAP Plus 72cv
Garmin ECHOMAP Plus 73cv
Garmin ECHOMAP Plus 74cv
Garmin ECHOMAP Plus 75cv
Garmin ECHOMAP Plus 77cv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 723
Garmin GPSMAP 723xsv
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin GPSMAP 743
Garmin GPSMAP 743xsv
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Garmin Striker Vivid 5cv
Garmin Striker Vivid 7cv
Garmin Striker Vivid 7sv
Humminbird Fishfinders and GPS Chartplotters
Lowrance Elite FS 7
Lowrance Elite FS 9
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Lowrance Hook Reveal 7 Series
Lowrance Hook Reveal 9 Series
Raymarine Fishfinders and GPS Chartplotters
Garmin ECHOMAP UHD2 5"
Garmin ECHOMAP UHD2 7"
Lowrance Eagle 7
Lowrance Eagle 9
Ask a question
Write your opinion
- View details

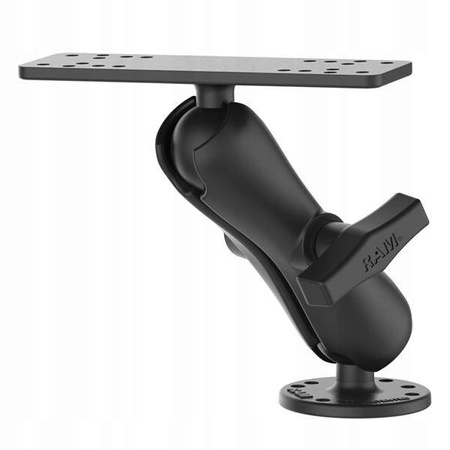

The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters. BrandSymbolRAM-111UProducer code793442000157Product Weight572 g608 gProduct DimensionsOverall Height: 7.35"Socket-to-Socket Length4.66"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|See DrawingAMPS 4-Hole3-Hole 120 Degree (Small)Plate SizeRectangular Plate: 6.25" x 2"|Round Plate: 2.5" DiameterWeight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeDrill DownBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatKayakComponent partsRAM-111BURAM-201URAM-202USocket To Socket Length4.66"Ball SizeC Size (1.5") - CompatibilityGarmin ECHOMAP Plus 72cvGarmin ECHOMAP Plus 73cvGarmin ECHOMAP Plus 74cvGarmin ECHOMAP Plus 75cvGarmin ECHOMAP Plus 77cvGarmin Fishfinders and GPS ChartplottersGarmin GPSMAP 722Garmin GPSMAP 722xsGarmin GPSMAP 723Garmin GPSMAP 723xsvGarmin GPSMAP 742Garmin GPSMAP 742xsGarmin GPSMAP 743Garmin GPSMAP 743xsvGarmin Striker Plus 5cvGarmin Striker Plus 7cvGarmin Striker Plus 7svGarmin Striker Vivid 5cvGarmin Striker Vivid 7cvGarmin Striker Vivid 7svHumminbird Fishfinders and GPS ChartplottersLowrance Elite FS 7Lowrance Elite FS 9Lowrance Fishfinders and GPS ChartplottersLowrance HDS Carbon 7Lowrance HDS LIVE 7Lowrance Hook Reveal 7 SeriesLowrance Hook Reveal 9 SeriesRaymarine Fishfinders and GPS ChartplottersGarmin ECHOMAP UHD2 5"Garmin ECHOMAP UHD2 7"Lowrance Eagle 7Lowrance Eagle 9
