Part#:UPC:
RAM-HOL-SAM60PD2NU
793442016165
- Features:

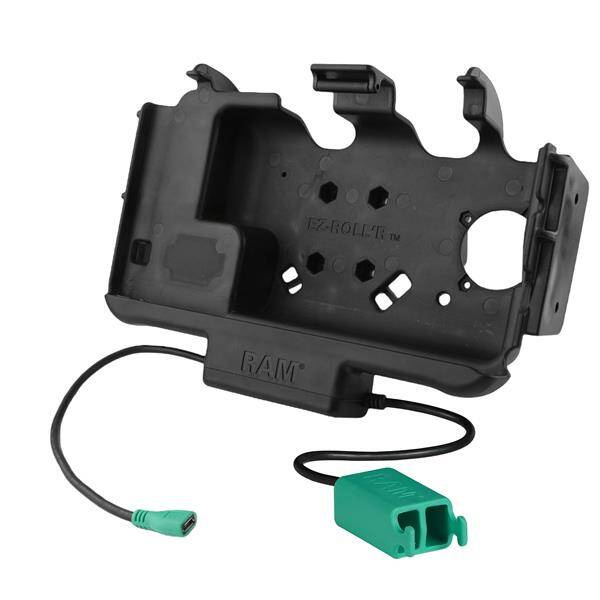

- EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable

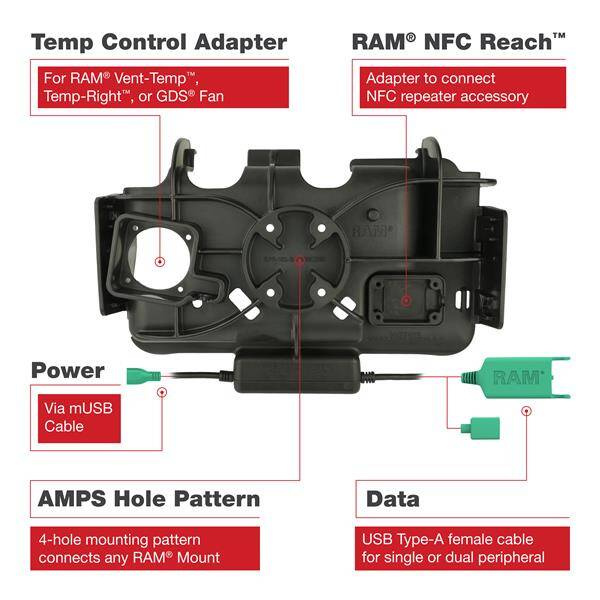

- Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
- Connect two additional peripherals via USB Type-A
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty
- EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable
- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
Brand
Symbol
RAM-HOL-SAM60PD2NU
Producer code
793442016165
Series
Product Weight
413 g
Hardware Included

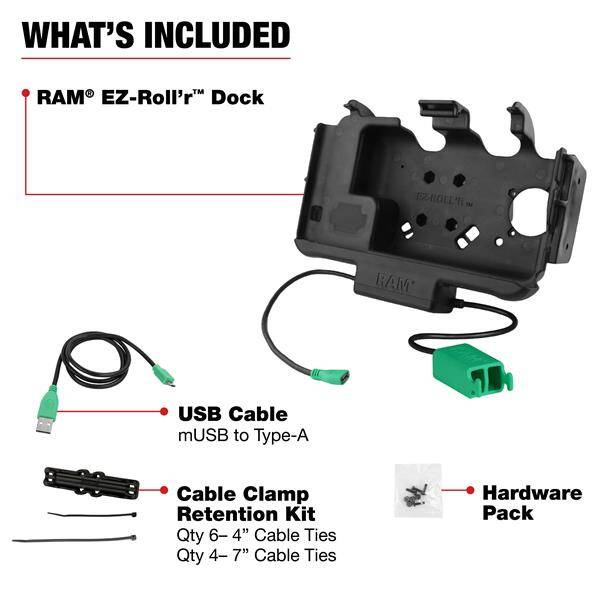

(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(4) Large Cable Ties|(6) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
4.4-5.4VDC (USB power source dependent)
Output Voltage
4.4VDC-5.4VDC (USB power source dependent)
Power Output
500mA per USB port
Input Connector
mUSB Female
Input Cable Length
214mm
Output Connector
(2) USB 2.0 Type A
Output Cable Length
217mm
Component parts
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-MUSB2-2U
Peripheral Output
900mAh (per port)
Samsung Tab Active3
Samsung Tab Active5
Ask a question
Write your opinion
- View details

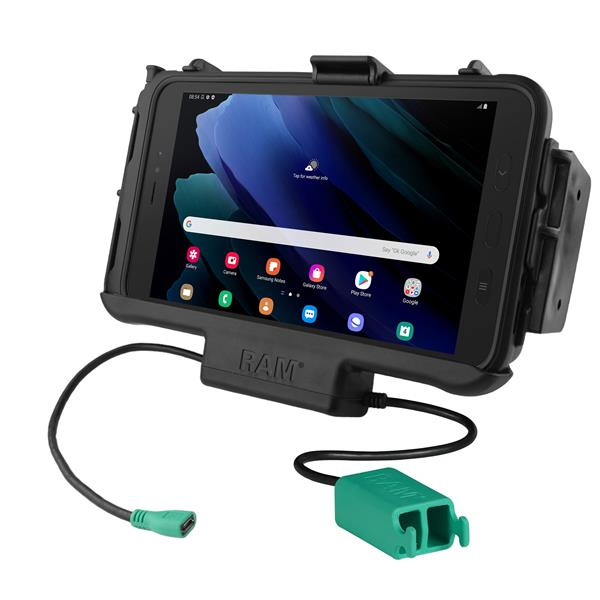

The RAM EZ Roll'r Modular Dual USB Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60PD2NU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS USB 2.0 cable, cable clamp, and zip ties. BrandSymbolRAM-HOL-SAM60PD2NUProducer code793442016165SeriesProduct Weight413 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(4) Large Cable Ties|(6) Small Cable TiesHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage4.4-5.4VDC (USB power source dependent)Output Voltage4.4VDC-5.4VDC (USB power source dependent)Power Output500mA per USB portInput ConnectormUSB FemaleInput Cable Length214mmOutput Connector(2) USB 2.0 Type AOutput Cable Length217mmComponent partsRAM-GDS-CAB-CLAMP1URAM-GDS-CAB-MUSB2-2UPeripheral Output900mAh (per port) - CompatibilitySamsung Tab Active3Samsung Tab Active5
