RAM® EZ-Roll'r™ Power & Data Dock for Tab Active4 Pro & Tab Active Pro
Part#:UPC:
RAM-HOL-SAM52CP-1AU
793442022142
- Features:
- Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Power delivered via mUSB connector; connect a single input device via USB-A connector
- Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
- Compatible with factory skin and RAM® Skin™
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-SAM52CP-1AU
Producer code
793442022142
Series
Product Weight
336 g

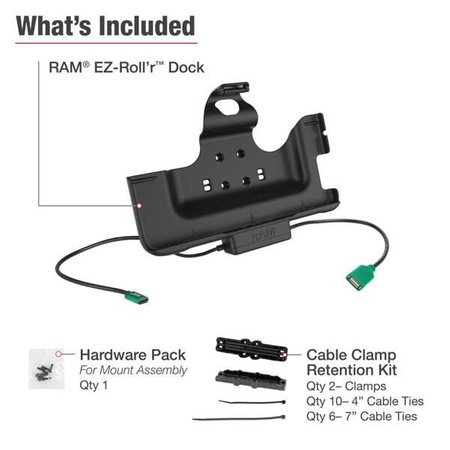

Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(5) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
250mm
Output Connector
USB 1.1 Type A
Output Cable Length
250mm
Peripheral Output
500mAh
Transfer Speed
12Mbps
Component parts
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-CLAMP2U
Samsung Galaxy Tab Active Pro
Samsung Galaxy Tab Active4 Pro
Ask a question
Write your opinion
- View details

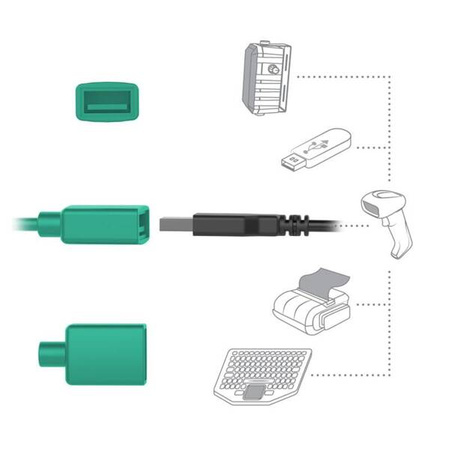

The RAM EZ-Rollr powered/data cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM Skin for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin thats included with the device. In addition, this cradle works perfectly with the RAM Skin while utilizing the GDS Hand-Stand or GDS shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM EZ-Rollr powered cradle also leaves the devices speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner. BrandSymbolRAM-HOL-SAM52CP-1AUProducer code793442022142SeriesProduct Weight336 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(5) Small Cable TiesHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5.3-5.4VDCOutput Voltage5VDCPower Output500mAInput ConnectorUSB Type-C FemaleInput Cable Length250mmOutput ConnectorUSB 1.1 Type AOutput Cable Length250mmPeripheral Output500mAhTransfer Speed12MbpsComponent partsRAM-GDS-CAB-CLAMP1URAM-GDS-CAB-CLAMP2U - CompatibilitySamsung Galaxy Tab Active ProSamsung Galaxy Tab Active4 Pro
