RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3
Part#:UPC:
RAM-HOL-SAM60CP-1AU
793442021893
- Features:
- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-SAM60CP-1AU
Producer code
793442021893
Series
Product Weight
322 g

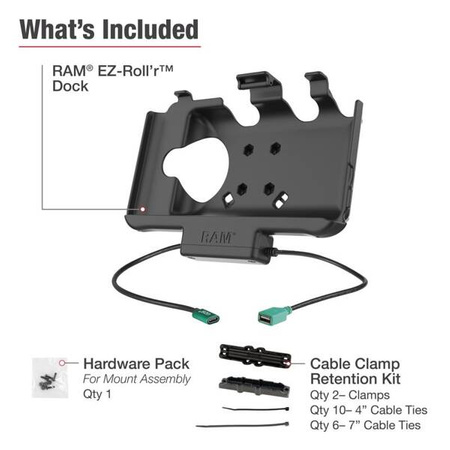

Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Optional Cable Clamp Housings|(6) Large Cable Ties|(10) Small Cable Ties
Product Dimensions
Width: 9.24"|Height: 6.34"|Depth: 2.57"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
250mm
Output Connector
USB 1.1 Type A
Output Cable Length
250mm
Peripheral Output
500mAh
Transfer Speed
12Mbps
Component parts
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-CLAMP2U
Samsung Tab Active5
Samsung Tab Active3
Samsung Tab Active2
Ask a question
Write your opinion
- View details

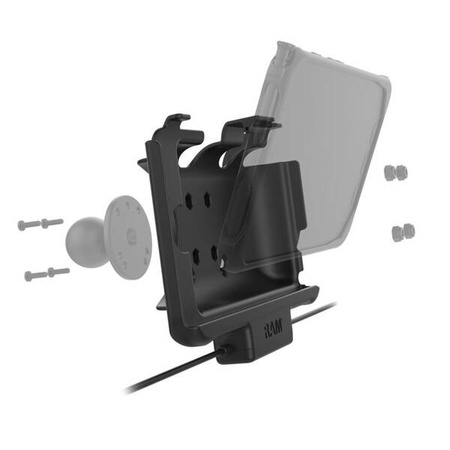

This RAM EZ-Rollr power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS Hand-Stand attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle. BrandSymbolRAM-HOL-SAM60CP-1AUProducer code793442021893SeriesProduct Weight322 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Optional Cable Clamp Housings|(6) Large Cable Ties|(10) Small Cable TiesProduct DimensionsWidth: 9.24"|Height: 6.34"|Depth: 2.57"Hole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5.3-5.4VDCOutput Voltage5VDCPower Output500mAInput ConnectorUSB Type-C FemaleInput Cable Length250mmOutput ConnectorUSB 1.1 Type AOutput Cable Length250mmPeripheral Output500mAhTransfer Speed12MbpsComponent partsRAM-GDS-CAB-CLAMP1URAM-GDS-CAB-CLAMP2U - CompatibilitySamsung Tab Active5Samsung Tab Active3Samsung Tab Active2
