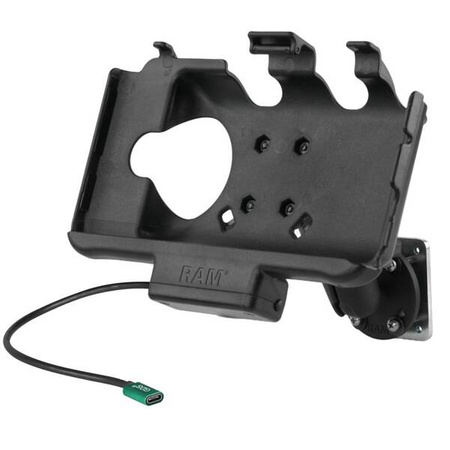

RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3

RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3

Part#:
RAM-101-225B2-SAM60CP-V7CU
UPC:
793442022159
+ Add to compareAdd to shopping list
  • Features:
  • RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
RAM Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM Skin, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5 round ball plates, medium length double socket arm, and a GDS modular hardwire charger an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.
Brand
RAM Mounts
Symbol
RAM-101-225B2-SAM60CP-V7CU
Producer code
793442022159
Series
EZ-Roll'r
Product Weight
857 g
Hardware Included
Assembly Hardware|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Hardwire Charger
Socket To Socket Length
3"
Ball Size
B Size (1")
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Overvoltage/Load Dump Compliance: Meets SAE J-1113|FCC, CE, UKCA, IC
Certifications
E-Mark Certification|Integrated Short Circuit Protection|WEEE and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|IEC/UL 62368-1
Component parts
RAM-101-B-225B2U
RAM-HOL-SAM60CP-V7CU
Samsung Galaxy Tab Active5
Samsung Galaxy Tab Active3
Samsung Galaxy Tab Active2
