RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount
RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount

RAM® Finger-Grip® Universal Holder with Glare Shield Clamp Mount

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price163,19 €
192,42 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

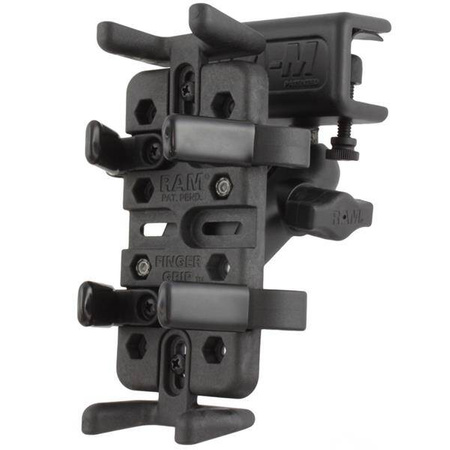

    The RAM-B-177-UN4 consists of a glare shield clamp base, double socket arm and universal Finger Grip cradle. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the most from your electronic device. The RAM glare shield clamp with double ball & socket system is far and away the most discrete and clean way to mount most any compact electronic device to the glare shield of your aircraft.
    Symbol
    RAM-B-177-UN4
    Producer code
    793442909436
    Product Weight
    508 g
    Hardware Included
    Assembly Hardware|(2) 1/4"-20 x 1.25" Composite Thumb Screws|(2) Rubber Caps|(1) 1.93" x 3.06" Rubber Adhesive Pad
    Holder Dimensions
    Height Range: 7.25" max (using optional supports)|Width Range: 1.25" - 3.5"|Max Depth: 1.5"
    Clamp Range
    .625" max
    Socket-to-Socket Length
    1.75"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Retail Bag
    Mounting Type
    Flat Edge Clamp
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Short Arm
    Device or Accessory Type
    Phone
    Radio
    Vehicle Type
    Aircraft
    Component parts
    RAM-B-177U
    RAM-HOL-UN4U
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
