RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot

RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot

Part#:
RAM-HOL-ZE24P-1U
UPC:
793442016714
+ Add to compareAdd to shopping list
  • Features:

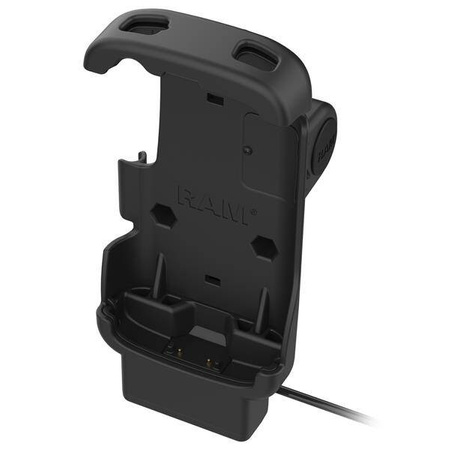

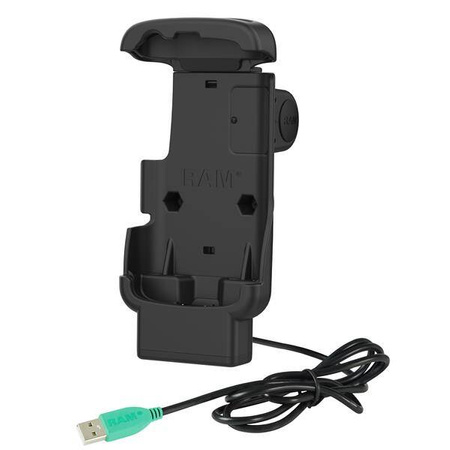

  • Spring-loaded form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer without Rugged Boot; provides power through 1.25-meter long USB Type-A connector

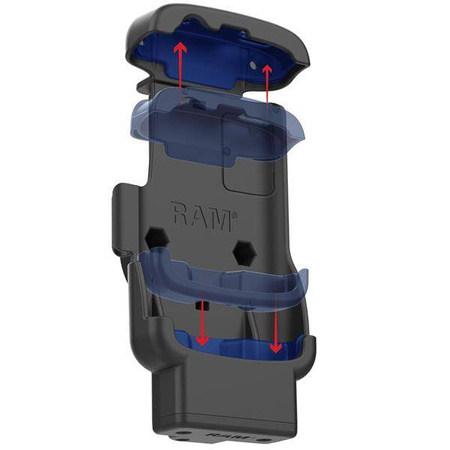

  • Includes top and bottom shim inserts for a form-fit docking experience when using the TC22/TC27 without the Rugged Boot
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Tuesday 11 pcs in stock
215,77 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
uniwersalny
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

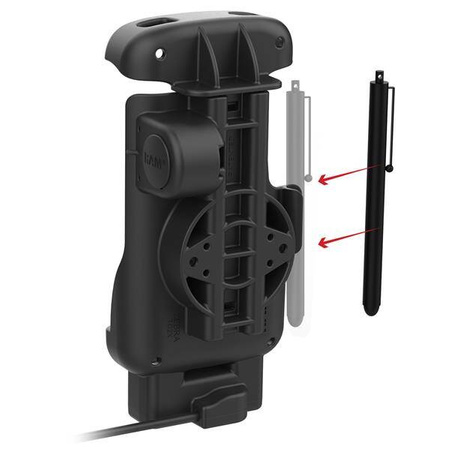

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24P-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
Brand
RAM Mounts
Symbol
RAM-HOL-ZE24P-1U
Producer code
793442016714
Product Weight
290 g
Hardware Included
(2) #8-32 x 5/8" Machine Screws|(2) #8-32 x 3/4" Machine Screws|(2) #8-32 Nylock Nuts
Product Dimensions
Overall Height: 7.72"|Overall Width: 3.66"|Overall Depth: 2.54"
Hole Pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
USB Type A
Input Cable Length
1.25 Meters
Certifications
RoHS|WEEE|CE|UKCA
Zebra TC22 & TC27 without Rugged Boot
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    This spring-loaded, form-fit powered dock (RAM-HOL-ZE24P-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
    Brand
    RAM Mounts
    Symbol
    RAM-HOL-ZE24P-1U
    Producer code
    793442016714
    Product Weight
    290 g
    Hardware Included
    (2) #8-32 x 5/8" Machine Screws|(2) #8-32 x 3/4" Machine Screws|(2) #8-32 Nylock Nuts
    Product Dimensions
    Overall Height: 7.72"|Overall Width: 3.66"|Overall Depth: 2.54"
    Hole Pattern
    2-Hole AMPS: 1.912"
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Connector
    USB Type A
    Input Cable Length
    1.25 Meters
    Certifications
    RoHS|WEEE|CE|UKCA
  • Compatibility
    Zebra TC22 & TC27 without Rugged Boot
