RAM® Glare Shield Clamp Mount

RAM® Glare Shield Clamp Mount

Part#:
RAM-B-177-C
UPC:
793442937880
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price131,19 €
160,74 €(Discount 17%)
133,11 €
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

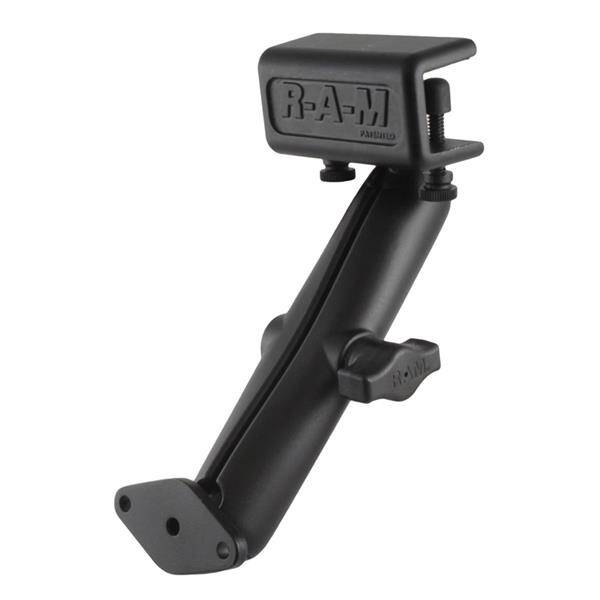

The RAM-B-177-C consists of a glare shield clamp base, short double socket arm and diamond base adapter. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplance. The base has two composite bolts that, when tightened, clamp the base to the lip surface. The 2.43" x 1.31" diamond base contains two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-177-C
Producer code
793442937880
Product Weight
485 g
Hardware Included
(2) 1/4"-20 x 1.25" Composite Thumb Screws|(2) Rubber Caps|(1) 1.93" x 3.06" Rubber Adhesive Pad
Clamp Range
.625" max
Socket-to-Socket Length
5.31"
Hole Pattern
2-Hole AMPS: 1.912"
AMPS 2-Hole
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Retail Bag
Mounting Type
Flat Edge Clamp
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Long Arm
Vehicle Type
Aircraft
Component parts
RAM-B-201U-C
RAM-B-238U
RAM-B-259U
Socket To Socket Length
5.31"
Ball Size
B Size (1")
