RAM® Handlebar U-Bolt Double Ball Mount for Magellan eXplorist GC + More
RAM® Handlebar U-Bolt Double Ball Mount for Magellan eXplorist GC + More
RAM® Handlebar U-Bolt Double Ball Mount for Magellan eXplorist GC + More

RAM® Handlebar U-Bolt Double Ball Mount for Magellan eXplorist GC + More

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price95,19 €
110,37 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

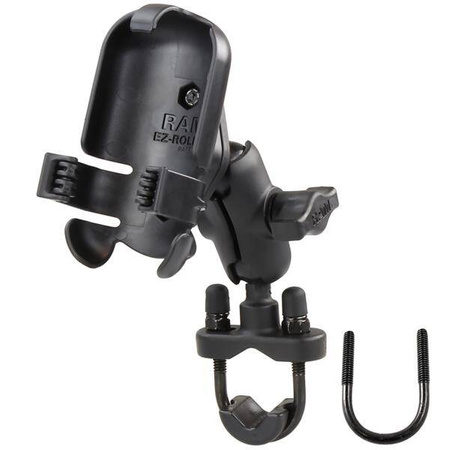

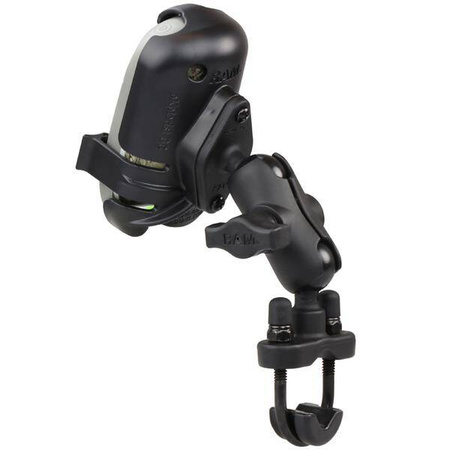

The RAM-B-149Z-A-MA15U consists of a zinc coated u-bolt base, SHORT size double socket arm and 1" diameter ball with a form-fit cradle for the Magellan eXplorist GC/110/310/350H series. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". Compatible with: Magellan eXplorist GC, Magellan eXplorist 110, Magellan eXplorist 310, and Magellan eXplorist 350H.
Symbol
RAM-B-149Z-A-MA15U
Producer code
793442950537
Series
Warranty
Product Weight
376 g
Hardware Included
Assembly Hardware|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
1.75"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Short Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
GPS
Vehicle Type
Motorcycle
Bicycle
Dirt Bike
Component parts
RAM-B-149ZU-A
RAM-HOL-MA15U
Socket To Socket Length
1.75"
Ball Size
B Size (1")
