RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
New in

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short

  • Features:
  • Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder; connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes, C size (1.5") 4-hole round RAM® ball adapter, U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price109,69 €
114,22 €
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

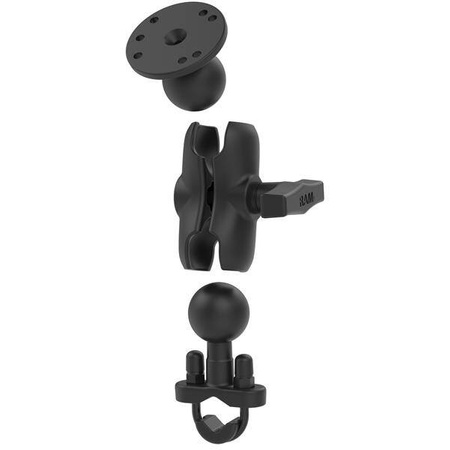

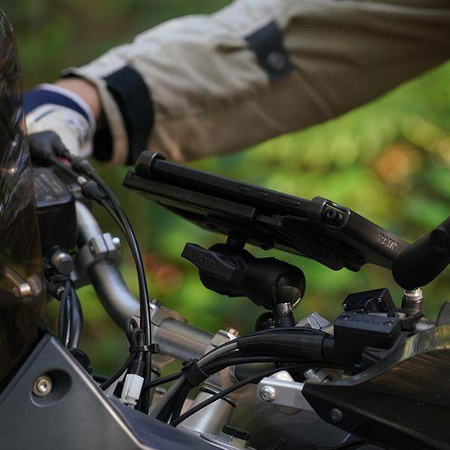

    The RAM Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5. The mount is designed with a RAM C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.
    Symbol
    RAM-149Z-B-202U
    Producer code
    793442020155
    Product Weight
    463 g
    Hardware Included
    (1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    2.5"
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
    AMPS 4-Hole
    3-Hole 120 Degree (Small)
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Socket Arm Length
    Short Arm
    Vehicle Type
    Motorcycle
    Component parts
    RAM-201U-B
    RAM-202U
    RAM-231ZU
    Socket To Socket Length
    2.5"
    Ball Size
    C Size (1.5")
